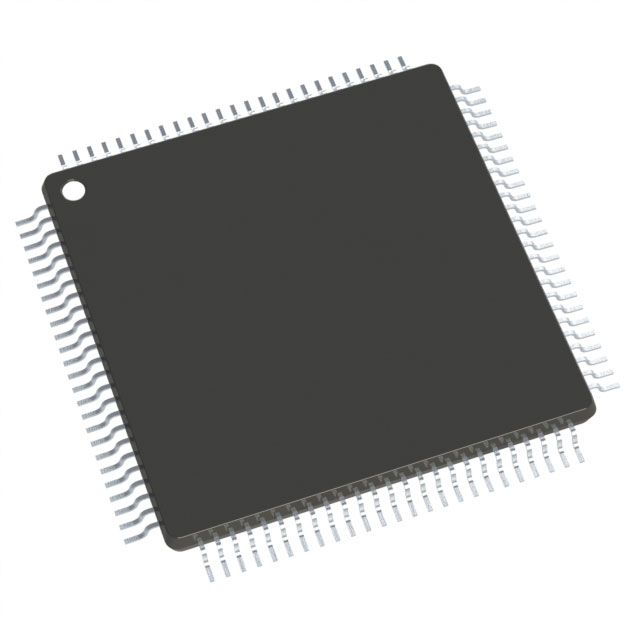

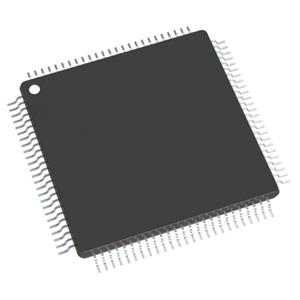

PIC32MX795F512LT-80I/PF is 32-bit Microcontrollers (up to 512 KB Flash and 128 KB SRAM) with Graphics Interface, USB, CAN, and Ethernet.

Product Attributes

Core Processor MIPS32® M4K™

Core Size 32-Bit Single-Core

Speed 80MHz

Connectivity Ethernet, I²C, SPI, UART/USART, USB OTG

Peripherals Brown-out Detect/Reset, DMA, POR, PWM, WDT

Number of I/O 85

Program Memory Size 512KB (512K x 8)

Program Memory Type FLASH

RAM Size 128K x 8

Voltage - Supply (Vcc/Vdd) 2.3V ~ 3.6V

Data Converters A/D 16x10b

Oscillator Type Internal

Operating Temperature -40°C ~ 85°C (TA)

Mounting Type Surface Mount

Package / Case 100-TQFP

Supplier Device Package 100-TQFP (14x14)

Product Features

Operating Conditions: 2.3V to 3.6V, -40ºC to +105ºC, DC to 80 MHz

Core: 80 MHz/105 DMIPS MIPS32® M4K®

MIPS16e® mode for up to 40% smaller code size

Code-efficient (C and Assembly) architecture

Single-cycle (MAC) 32x16 and two-cycle 32x32 multiply

Clock Management

0.9% internal oscillator (on some variants)

Programmable PLLs and oscillator clock sources

Fail-Safe Clock Monitor (FSCM)

Independent Watchdog Timer

Fast wake-up and start-up

Power Management

Low-power management modes (Sleep and Idle)

Integrated Power-on Reset, Brown-out Reset

0.5 mA/MHz dynamic current (typical)

41 µA IPD current (typical)
