ADRF5740BCCZN is a silicon, 4-bit digital attenuator with 22 dB attenuation control range in 2 dB steps.

Product Features

Ultrawideband frequency range: 10 MHz to 60 GHz

Attenuation range: 2 dB steps to 22 dB

Low insertion loss

1.4 dB up to 20 GHz

2.2 dB up to 44 GHz

3.3 dB up to 55 GHz

Attenuation accuracy

±(0.1 + 1.0% of state) up to 20GHz

±(0.2 + 3.0% of state) up to 44GHz

±(0.2 + 7.0% of state) up to 55GHz

Typical step error

±0.30 dB up to 20 GHz

±0.50 dB up to 44 GHz

±0.60 dB up to 55 GHz

High input linearity

P0.1dB: 25.5 dBm typical

IP3: 45 dBm typical

High RF input power handling: 24 dBm average, 24 dBm peak

Tight distribution in relative phase

No low frequency spurious signals

Parallel mode control, CMOS and LVTTL compatible

RF amplitude settling time (0.1 dB of final RF output): 175 ns

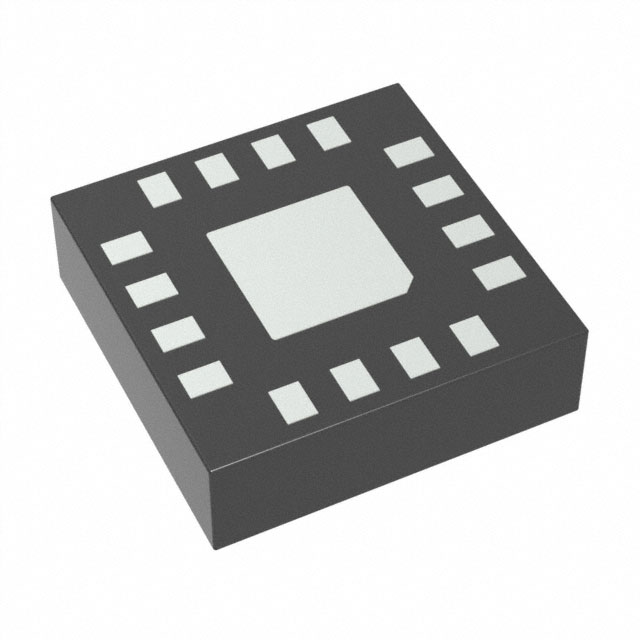

16-terminal, 2.5 mm × 2.5 mm, RoHS compliant LGA package

Applications

Industrial scanners

Test and instrumentation

Cellular infrastructure: 5G millimeter wave

Military radios, radars, electronic counter measures (ECMs)

Microwave radios and very small aperture terminals (VSATs)
