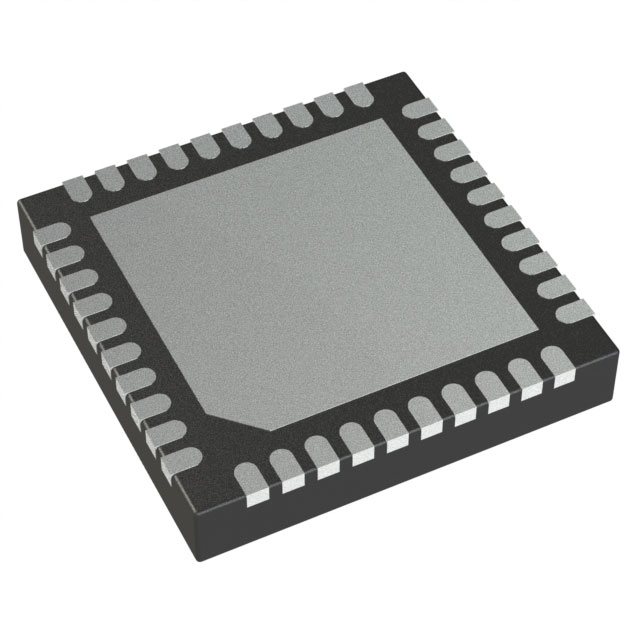

The SSM3582ACPZ is a fully integrated, high efficiency, digital input Class D stereo audio amplifier. A proprietary spread spectrum sigma-delta modulation scheme allows direct connection to speakers. The direct connection ensures top analogue performance while providing lower emissions compared to other Class D architectures. An optional ultra-low electromagnetic interference (EMI) mode dramatically reduces electromagnetic emissions above 100MHz. Audio is transmitted digitally to the amplifier. This transmission method minimises the potential for signal corruption in a digital environment. Provides excellent analogue performance with a signal-to-noise ratio in excess of 106dB and total harmonic distortion plus noise (THD+ N) as low as 0.004%.

Product Attributes

Type: Class D

Output type: 2-channel (stereo)

Maximum Output Power x Number of Channels at Different Loads: 31.76W x 2 @ 4 Ohms

Voltage - Supply: 4.5V ~ 16V

Mounting Type: Surface Mount

Operating Temperature: -40°C ~ 85°C

Supplier Device Package: 40-LFCSP-WQ (6x6)

Package/Shell: 40-WFQFN Exposed Pad, CSP

Applications

● Mobile Computing

● All-in-Ones

● Portable electronics

● Wireless speakers

● Televisions
