LTM8080EY is a 40VIN, dual 500mA or single 1A ultralow noise, ultrahigh PSRR µModule® regulator.LTM8080EY has cascaded architecture which contains a 40VIN step-down Silent Switcher regulator with an integrated EMI noise shield followed by dual high-performance low dropout linear regulators.

Features

Dual LDOs Powered by an Integrated Switching Step-Down Regulator

Low Noise Silent Switcher Architecture with an Integrated EMI Noise Shield

CISPR22 Class B and CISPR25 Class 5 Compliant

Ultralow 0utput RMS Noise: <1μVRms (10Hz to 100kHz)

Ultralow Output Spot Noise: 2nV/√Hz at 10kHz

Ultrahigh PSRR: 80dB at 100kHz

Wide Input Voltage: 3.5V to 40V

Wide Output Voltage: OV to 8V

Dual 500mA Continuous Current at TA= 85°C

Voltage Tracking Function to Minimize Power Loss

100μA SET Pin Current with +1% Initial Accuracy

Selectable Switching Frequency: 200kHz to 2.2MHz

External Synchronization

Programmable Power Good

Parllelable for Lower Noise and Higher Current

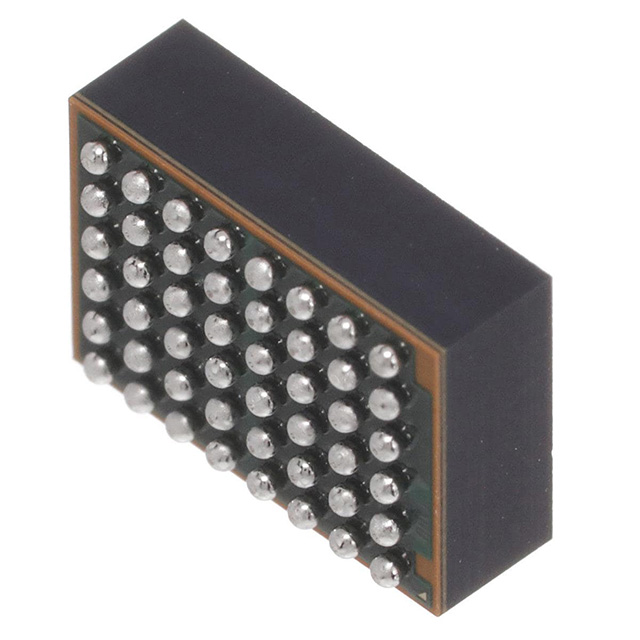

9mm x 6.25mm x 3.32mm BGA

Applications

RF Power Supplies: PLLs, VCOs, Mixers, LNAs

Very Low Noise Instrumentation

High Speed/High Precision Data Converters

Medical Applications: Imaging, Diagnostics
