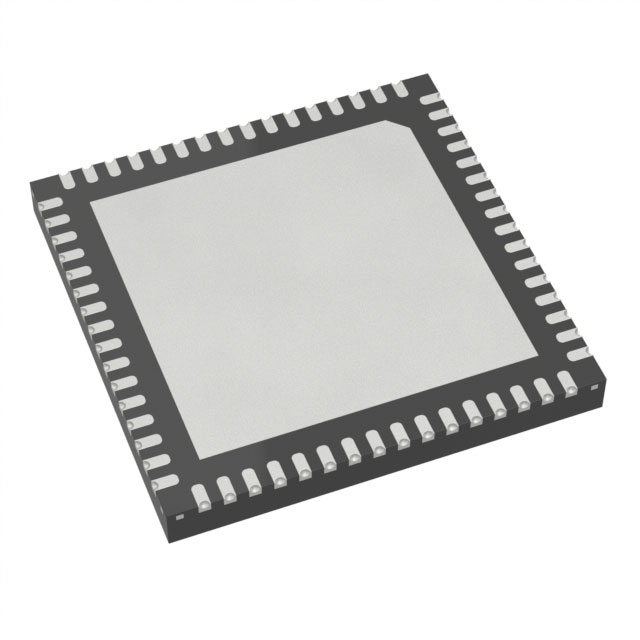

Trade Name:NAFE11388B40BSK
Data Manual:NAFE11388B40BSK.pdf
Brand:NXP
Particular Year:23+
Package:64-VFQFN
Delivery Date:New and Original
Stock: 1000pcs
NAFE11388B40BSK is a highly configurable industrial-grade multichannel universal input analog front-end (AFE) that meets high-precision measurement requirements. It is equipped with various diagnostic and supplies supervisory circuitry for condition monitoring and anomaly detection.
Features and benefits
• Eight configurable HV inputs
– Single-ended or differential, with ranges up to ±25 V
– Independent configurations for voltage and current ranges
– Overvoltage protected up to ±36 V for less than one hour
• Fast data rates
– 7.5 SPS to 288 kSPS
– Simultaneous 50 Hz/60 Hz line rejection
– ENOB: 17-bit at 72 kSPS
• High accuracy
– 0.005 %FS accuracy at room after user calibration
– 0.1 %FS accuracy over -25 ℃ to 105 ℃
• System calibration
– End-to-end calibration with integrated precise voltage sources
– Accurate factory-calibrated products available
• ±3 ⁰C internal temperature sensor
• 0.2% internal oscillator accuracy at room temperature
• Diagnostic system for faults detection and prediction
• CRC error detection
• Ten GPIOs
• 32 MHz SPI interface
• Robust 8 kV HBM ESD and IEC61000-4-5 2 kV surge protection
• Power supply: HV: ±7 V to ±24 V, LV: 3.3 V
• 125 mW low power consumption
• Operating temperature range TA: -40 ℃ to +125 ℃
• Package: 64 pin, 9 mm x 9 mm x 0.85 mm HVQFN
Applications
• Data acquisition system
• PLC, DCS I/O modules
• Industrial automation and process control
