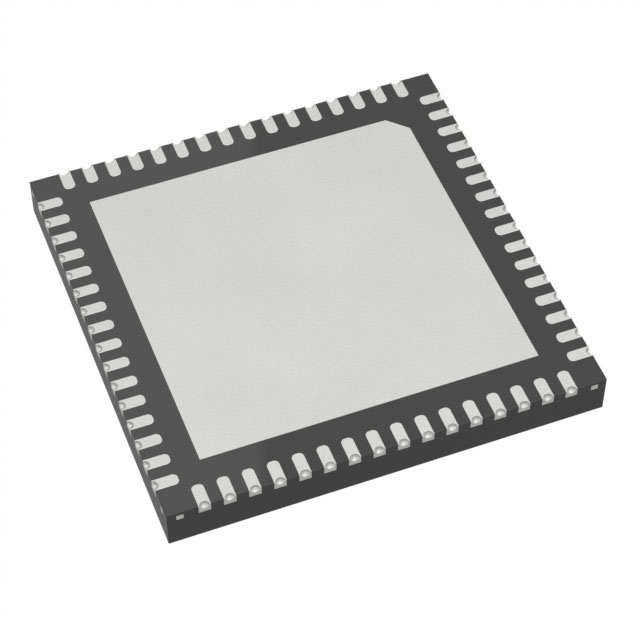

NAFE11388B40BSMP is a highly configurable industrial-grade multichannel universal input analog front-end (AFE) that meets high-precision measurement requirements. It is equipped with various diagnostic and supplies supervisory circuitry for condition monitoring and anomaly detection.

Features and benefits

• Eight configurable HV inputs

– Single-ended or differential, with ranges up to ±25 V

– Independent configurations for voltage and current ranges

– Overvoltage protected up to ±36 V for less than one hour

• Fast data rates

– 7.5 SPS to 288 kSPS

– Simultaneous 50 Hz/60 Hz line rejection

– ENOB: 17-bit at 72 kSPS

• High accuracy

– 0.005 %FS accuracy at room after user calibration

– 0.1 %FS accuracy over -25 ℃ to 105 ℃

• System calibration

– End-to-end calibration with integrated precise voltage sources

– Accurate factory-calibrated products available

• ±3 ⁰C internal temperature sensor

• 0.2% internal oscillator accuracy at room temperature

• Diagnostic system for faults detection and prediction

• CRC error detection

• Ten GPIOs

• 32 MHz SPI interface

• Robust 8 kV HBM ESD and IEC61000-4-5 2 kV surge protection

• Power supply: HV: ±7 V to ±24 V, LV: 3.3 V

• 125 mW low power consumption

• Operating temperature range TA: -40 ℃ to +125 ℃

• Package: 64 pin, 9 mm x 9 mm x 0.85 mm HVQFN

Applications

• Data acquisition system

• PLC, DCS I/O modules

• Industrial automation and process control
