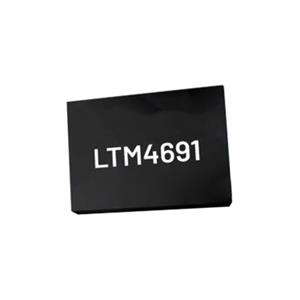

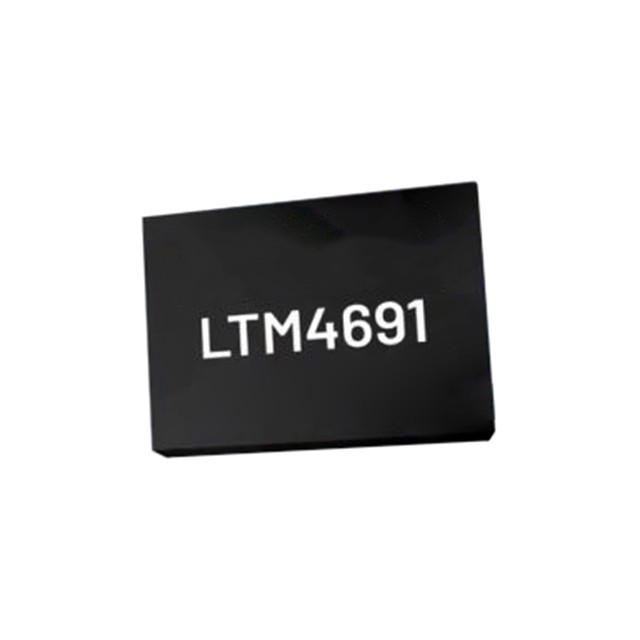

The LTM4691IV is a complete dual-channel 2A output switch-mode DC/DC power supply in a small 3mm × 4mm × 1.18mm LGA package. The package contains the switching controller, power FETs, inductor, and all supporting components. Operating over an input voltage range of 2.25V to 3.6V, the LTM4691IV supports two outputs with a programmable output voltage range of 0.5V to 2.5V set via external resistors. Its high-efficiency design provides up to 2A of continuous current on each output. Only input and output body capacitors are required.

Benefits and Features

Tiny surface-mount slim 3mm × 4mm × 1.18mm LGA package

Input voltage range: 2.25V to 3.6V

Dual 2A DC output currents

±1.5% total output voltage regulation

Current-mode control for fast transient response

External frequency synchronization

180° staggered phase operation

Selectable Pulse Hopping/Low Ripple Burst ® Operating Mode/Forced Continuous Mode

Power Normal Indicator

Internal Soft Start

Internal compensation

Over-voltage, over-current and over-temperature protection

Applications

Telecommunications, networking and industrial equipment

Point-of-load regulation

FPGA, ASIC core power supplies
