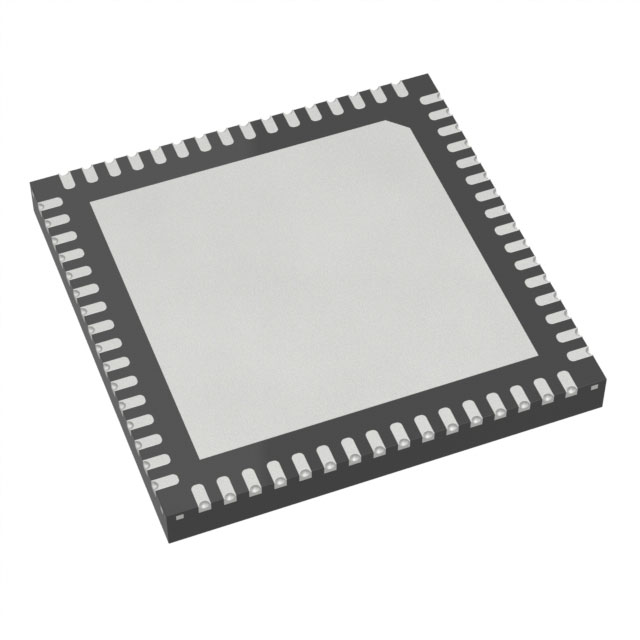

NAFE71388B40BSE is a highly configurable, universal eight-input Analog Front End with various integrated diagnostic features.

Features

Eight configurable HV inputs

Single ended or differential, with ranges up to +25 V

Independent configurations for voltage and current ranges

Overvoltage protected up to +36 V for less than one hour

Fast data rates

15 SPS to 576 kSPS

Simultaneous 50 Hz/60 Hz line rejection

ENOB: 17-bit at 144 kSPS

High accuracy

0.005 %FS accuracy at room after user calibration

0.1 %FS accuracy over -25 C to 105 C

System calibration

End-to-end calibration with integrated precise voltage sources

Accurate factory-calibrated products available

+3 °C internal temperature sensor

0.2% internal oscillator accuracy at room temperature

Diagnostic system for faults detection and prediction

CRC error detection

Ten GPIOs

32 MHz SPI interface

Robust 8 kV HBM ESD and IEC61000-4-5 2 kV surge protection

Power supply: HV: t7 V to +24 V, LV: 3.3 V

135 mW low power consumption

Operating temperature range TA: -40 C to +125 C

Applications

Data acquisition system

PLC, DCS I/O modules

Industrial automation and process control
