The STM32F407ZET7 is based on a high-performance ARM® Cortex-M4 32-bit RISC core and operates at up to 168MHz. The Cortex-M4 kernel has floating-point unit (FPU) single precision and supports all ARM single precision data processing instructions and data types. It also implements a complete DSP instruction set and memory protection Unit (MPU) to enhance application security.

specification

Core processor: ARM® Cortex®-M4

Kernel specification: 32-bit single-core

Speed: 168MHz

Connectivity: CANbus, DCMI, EBI/EMI, Ethernet, I²C, IrDA, LINbus, SPI, ART/USART, USB OTG

Peripheral: Undervoltage detection/reset, DMA, I²S, LCD, POR, PWM, WDT

Number of I/ OS: 114

Program storage capacity: 512KB (512K x 8)

Program memory type: Flash

EEPROM capacity: -

RAM size: 192K x 8

Voltage - power supply (Vcc/Vdd) : 1.8V ~ 3.6V

Data converter: A/D 24x12b; D/A 2x12b

Oscillator type: Internal

Operating temperature: -40°C ~ 105°C (TA)

Mounting type: Surface mount type

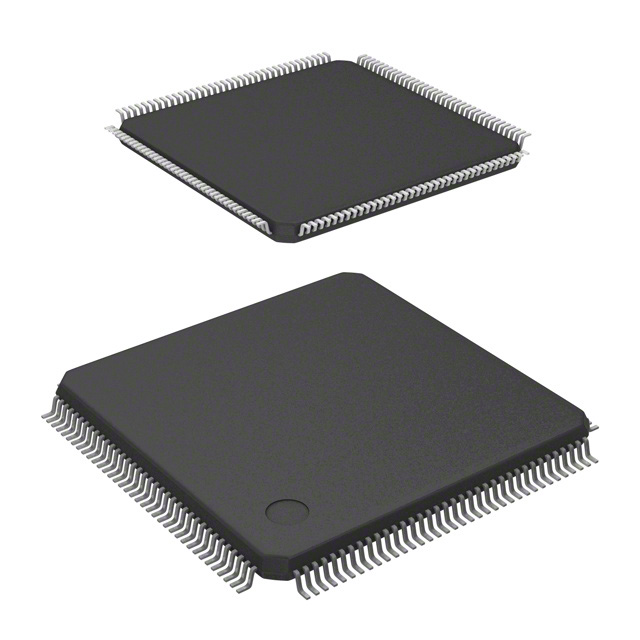

Package/housing: 144-LQFP

Supplier Device package: 144-LQFP (20x20)
