The STM32C092KCT6 is a 32-bit microcontroller ‌ based on an ARM Cortex-M0+ core. This microcontroller belongs to the STM32C0 series and integrates a memory protection unit (MPU), high-speed embedded memory (up to 30KB of SRAM and up to 256 KB of Flash program memory). The latter features read/write protection, proprietary code protection, and secure zones (DMA), rich system functions, enhanced I/O, and peripherals. Its technical parameters are as follows:

Technical parameters

Core processor: ARM® Cortex®-M0+

Kernel specification: 32- bits

Speed: 48MHz

Connection capabilities: CANbus, I2C, IrDA, LINbus, SPI, UART/USART

Peripherals: Power failure detection/reset, DMA, I2S, POR, PWM, WDT

I/O number: 30

Program storage capacity: 256KB (256K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 30K x 8

Voltage - Power Supply (Vcc/Vdd) : 2V to 3.6V

Data converter: A/D 18x12b SAR

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

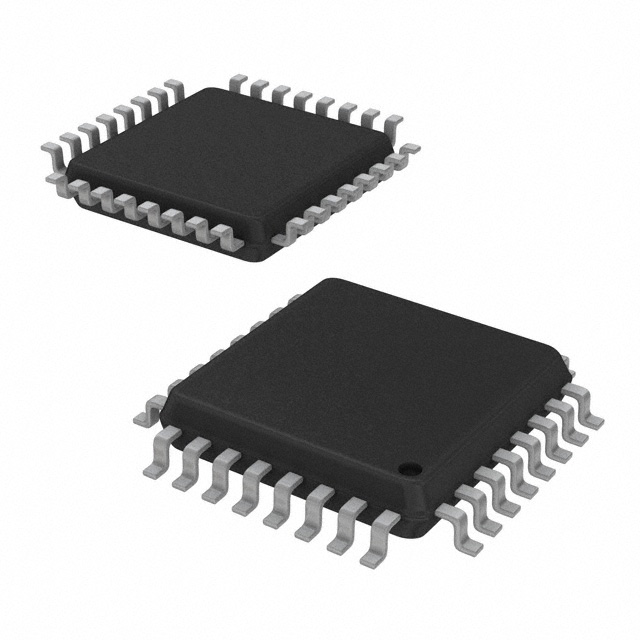

Device packaging: 32-LQFP (7x7)

The STM32C092KCT6 microcontroller is suitable for scenarios that require low power consumption and simple logic processing, such as small electronic products, smart home devices, portable instruments, etc. Due to its low power consumption and high cost performance, it is particularly suitable for equipment with strict requirements for cost and power consumption ‌.
