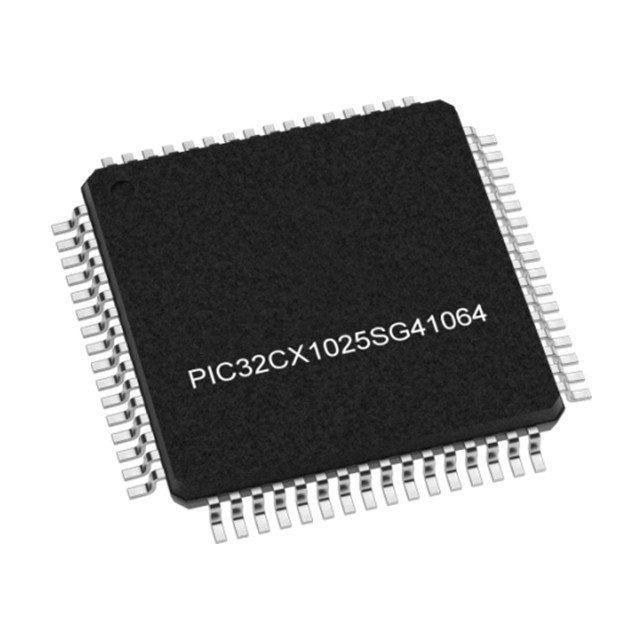

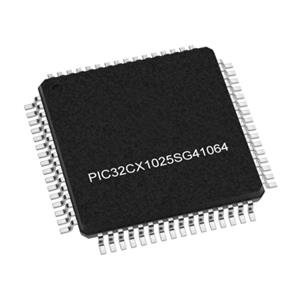

The PIC32CX1025SG41064-I/V2X microcontroller is a high-performance MCU that adopts a 32-bit Arm® Cortex®-M4F processor with a floating-point operation unit (FPU). Its operating frequency is up to 120 MHZ, and it is equipped with 1MB of dual-panel flash memory (with ECC) and 256KB of SRAM (with ECC). Its parameters and applications are as follows:

Technical parameters

Core processor: ARM® Cortex®-M4F

Kernel specification: 32- bits

Speed: 120MHz

Connection capabilities: CANbus, Ethernet, I2C, IrDA, LINbus, SPI, UART/USART, USB

Peripherals: Power failure detection/reset, Crypto-AES, POR, PWM, RSA, SHA, TRNG, WDT

I/O number: 51

Program storage capacity: 1MB (1M x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 256K x 8

Voltage-supply (Vcc/Vdd) : 1.71V to 3.63V

Data converter: A/D 24x12b D/A 2x12b

Oscillator types: external, internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device packaging: 64-TQFP (10x10)

Application field

1. Industrial Automation ‌ : Due to its high performance and rich peripheral interfaces, the PIC32CX1025SG41064-I/V2X is suitable for a variety of industrial automation equipment ‌.

2. Automotive applications ‌ : Its safety features and high reliability make it an ideal choice for automotive electronic control units (ECUs) ‌.

3. Wired communication equipment ‌ : 10/100 Ethernet MAC and CAN-FD ports support a variety of devices requiring wired connection ‌.

The PIC32CX1025SG41064-I/V2X microcontroller also adds a 10/100 Ethernet MAC and two CAN-FD ports for industrial automation, automotive applications, and general applications that require wired connections. The OTP area of the flash memory is used to develop an immutable secure boot. It also features secure debugging, chip erasure protection, IP protection and startup protection.
