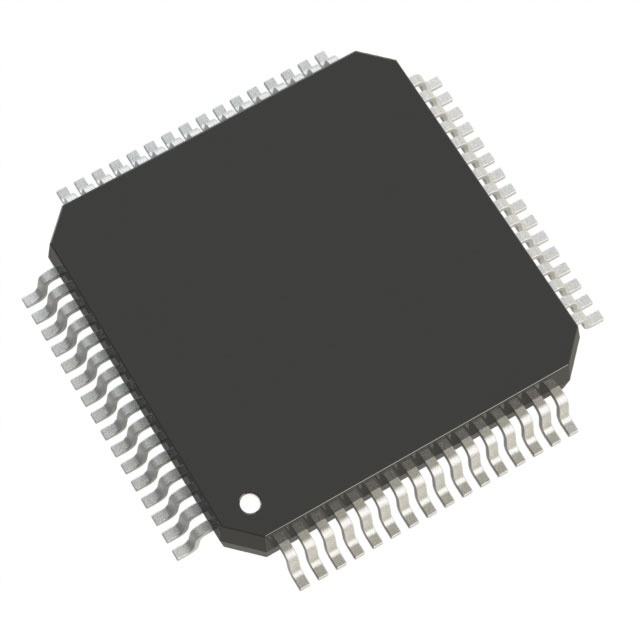

The STM32C092RCT6 is a 32-bit microcontroller based on the ARM Cortex-M0+ core with a clock speed of 48MHz, 256Kbytes of Flash and 36Kbytes of RAM‌. This microcontroller contains a general-purpose timer, supports a 16-bit automatic reinstallation counter, and supports increment count mode, decrement count mode, and increment and decrement count mode. In addition, it supports a pre-divider, the divider coefficient is dynamically adjustable from 1 to 65536, and it supports multiple operating modes such as input capture, output comparison, PWM generation and single pulse output ‌.

The main specifications of the STM32C092RCT6 microcontroller are as follows:

Core processor: ARM® Cortex®-M0+

Kernel specification: 32- bits

Speed: 48MHz

Connection capabilities: CANbus, I2C, IrDA, LINbus, SPI, UART/USART

Peripherals: Power failure detection/reset, DMA, I2S, POR, PWM, WDT

I/O number: 61

Program storage capacity: 256KB (256K x 8)

Program memory type: Flash memory

EEPROM capacity: -

RAM size: 30K x 8

Voltage - Power Supply (Vcc/Vdd) : 2V to 3.6V

Data converter: A/D 23x12b SAR

Oscillator type: Internal

Operating temperature: -40°C to 85°C (TA)

Installation type: Surface mount type

Device packaging: 64-LQFP (10x10)

Due to its low power consumption and cost-effectiveness, STM32C092RCT6 is often used in small products with simple logic, such as smart home devices, wearable devices, and small robots. Its very low power consumption and rich peripheral interface make it excel in iot devices that need to run for long periods ‌.
