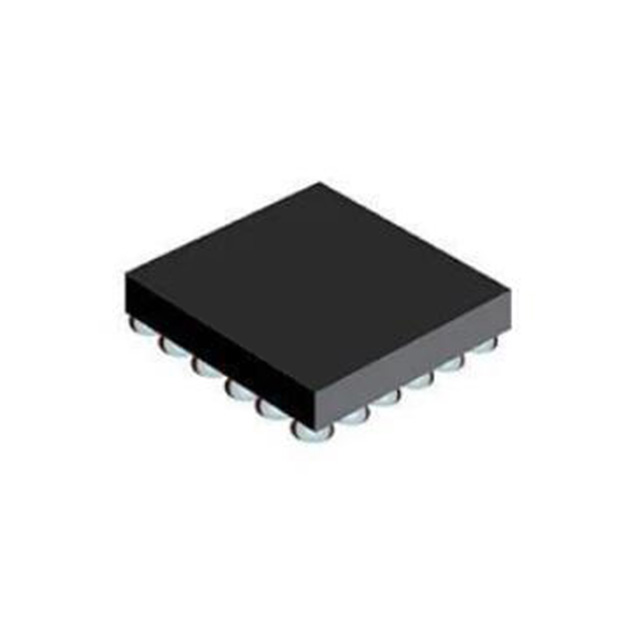

AMC60804TYBHR is a highly integrated, low-power analog monitor and controller for optical transceiver applications. The AMC60804T includes four 12-bit current output digital-to-analog converters (IDACs) and four 12-bit voltage output DACs (VDACs) with programmable output ranges.

Product Features

Four 12-bit current output DACs (IDACs)

– 200mA full-scale output range

– Low supply headroom: 200 mV at 200 mA

Four 12-bit voltage output DACs (VDACs)

– Selectable full-scale output ranges:

–5 V, –2.5 V, +2.5 V and +5 V

– High-current drive capability: ±50 mA

Multichannel, 12-bit, 1-MSPS SAR ADC

– Four external inputs: 2.5V and 5V ranges

– Four IDAC voltage monitor channels

– Four VDAC current monitor channels

– Programmable sequencer

– Programmable out-of-range alarms

Internal 2.5V reference

Supply and temperature fault alarms

SPI and I2C interfaces: 1.7V to 3.6V operation

– SPI: 4-wire interface

– I2C: Four target addresses

Specified temperature range: –40°C to +125°C

Applications

Optical module

Intra-DC interconnect (metro)
