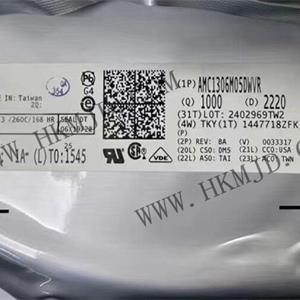

AMC1306M05DWVR is a precision, delta-sigma (ΔΣ) modulator with the output separated from the input circuitry by a capacitive double isolation barrier that is highly resistant to magnetic interference.

Product Features

Pin-compatible family optimized for shunt-resistorbased current measurements:

– ±50mV or ±250mV input voltage ranges

– Manchester coded or uncoded bitstream options

Excellent DC performance:

– Offset error: ±50 µV or ±100 µV (max)

– Offset drift: 1 µV/°C (max)

– Gain error: ±0.2% (max)

– Gain drift: ±40 ppm/°C (max)

Transient immunity: 100 kV/µs (typ)

System-level diagnostic features

Safety-related certifications:

– 7000-VPEAK reinforced isolation per DIN VDE V 0884-11: 2017-01

– 5000-VRMS isolation for 1 minute per UL1577

• Fully specified over the extended industrial temperature range: –40°C to +125°C

Applications

Shunt-resistor-based current sensing and isolated voltage measurements in:

– Industrial motor drives

– Photovoltaic inverters

– Uninterruptible power supplies

• 1.Is the inventory and price seen on the platform accurate?

  A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.

• 2.Are all our products genuine?

  A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.

• 3.Can you provide the qualification certificate of the original factory or agent?

  A: at present, our self-employed brands TI，ST，ADI，NXP，LATTICE，CYPRESS，INFINEON，XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.

• 4.Can I make an inquiry through the company's website?

  A: You can inquire through the website, or by phone and email.

• 5.When can I deliver the goods after placing an order? How long will it take to get there?

  A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.

• 6.Can the company issue an invoice?

  A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
