The MCP6486RT-E/OT 10MHz operational amplifier is powered from a single supply as low as 1.8V. The amplifiers have quiescent currents as low as 720µA (maximum per amplifier).

Product Attributes

Manufacturer: Microchip

Product Category: Operational Amplifiers - Op Amps

Mounting Style: SMD/SMT

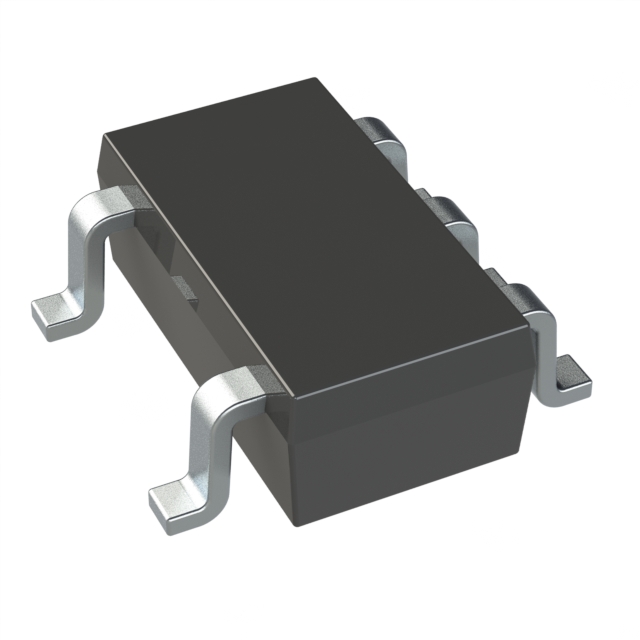

Package / Case: SOT-23-5

Number of Channels: 1 Channel

Supply Voltage - Max: 5.5 V

GBP-Gain Bandwidth Product: 10 MHz

Output current per channel: 50 mA

SR - Conversion rate: 20 V/us

Vos - Input bias voltage : 1.6 mV

Supply voltage - minimum: 1.8 V

Minimum operating temperature: - 40 C

Maximum operating temperature: + 125 C

Ib - Input bias current: 200 pA

Operating supply current: 720 uA

Shutdown: No Shutdown

CMRR - Common mode rejection ratio: 125 dB

en - Input voltage noise density: 16 nV/sqrt Hz

In - Input noise current density: 0.6 fA/sqrt Hz

Input type: Rail-to-Rail

Ios - Input bias current : 1 pA

Output Type: Rail-to-Rail

Product: Operational Amplifiers

Product Type: Op Amps - Operational Amplifiers

PSRR - Power Supply Rejection Ratio: 100 dB

Factory Package Quantity: 3000

Sub Category: Amplifier ICs

THD + Noise: 0.002 %

Vcm - Common Mode Voltage: 5.8 V

Applications

Automotive

Portable equipment

Medical diagnostic equipment

Active filters

Sensor Conditioning
