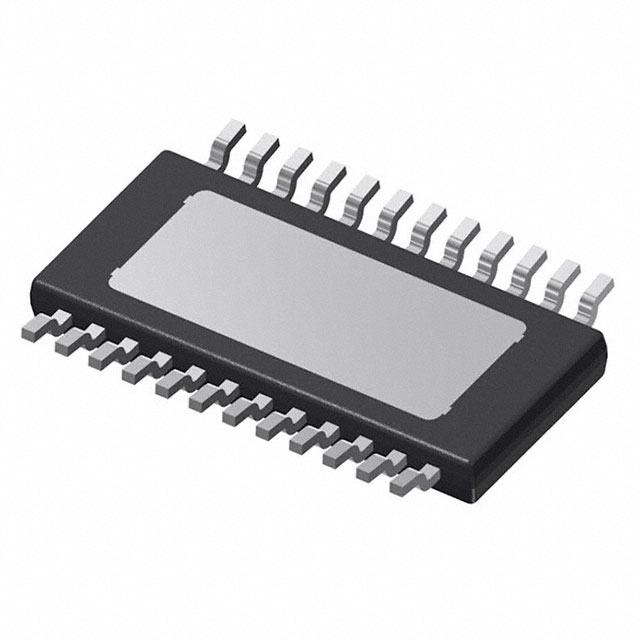

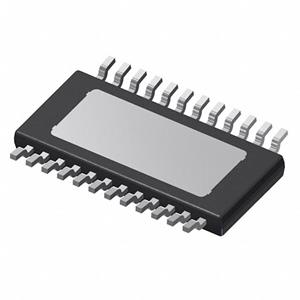

BTS722204ESA is a Serial Interface Power Controller, providing protection functions and diagnosis. The device is integrated in SMART7 technology.

Features

Basic Features

High-Side Switch with Diagnosis and Embedded Protection

Part of SPOCTH +2 Family

Daisy Chain capable SPI interface

3.3 V and 5 V compatible logic pins

Slew rate control for all Channels

ReverseON for low power dissipation in Reverse Polarity

Switch ON capability while Inverse Current condition (InverseON)

Green Product (RoHS compliant)

Protection Features

Absolute and dynamic temperature limitation with controlled restart

Overcurrent protection (tripping) with Programmable Restart Control and Current Threshold

Undervoltage shutdown

Overvoltage protection with external components

Diagnostic Features

Proportional load current sense multiplexed

Open Load in ON and OFF state

Short circuit to ground and battery

Diagnosis feedback via SPI

Functional Safety Features

Limp Home mode

Monitoring of Input pin status (IN and LHI)

Checksum verification of Configuration Registers

Current Sense verification mode

Applications

Suitable for resistive, inductive and capacitive loads

Replaces electromechanical relays, fuses and discrete circuits

Driving capability suitable for 7 A and 4 A loads and high inrush current loads such as 65W bulb or equivalent electronic loads (e.g. LED modules) and 42W bulb or equivalent electronic loads (e.g. LED modules)
