The MSP430F6634IZCAR mixed-signal microcontroller consists of several devices with a variety of peripherals suitable for use in a wide range of applications. This 16-bit RISC architecture combined with five low-power modes is optimised to extend battery life in portable measurement devices. It features a powerful 16-bit RISC CPU, 16-bit registers and a constant generator for maximum coding efficiency. The digitally controlled oscillator (DCO) wakes the device from low-power mode to active mode in 3µs (typical).

Product Attributes

Core processor: MSP430 CPUXV2

Core specification: 16-bit

Speed: 20MHz

Connectivity: I²C, IrDA, LINbus, SCI, SPI, UART/USART, USB

Peripherals: Undervoltage Detect/Reset, DMA, LCD, POR, PWM, WDT

Number of I/O: 74

Program memory capacity: 192KB (192K x 8)

Program memory type: Flash

RAM Size: 18K x 8

Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V

Data Converter: A/D 16x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

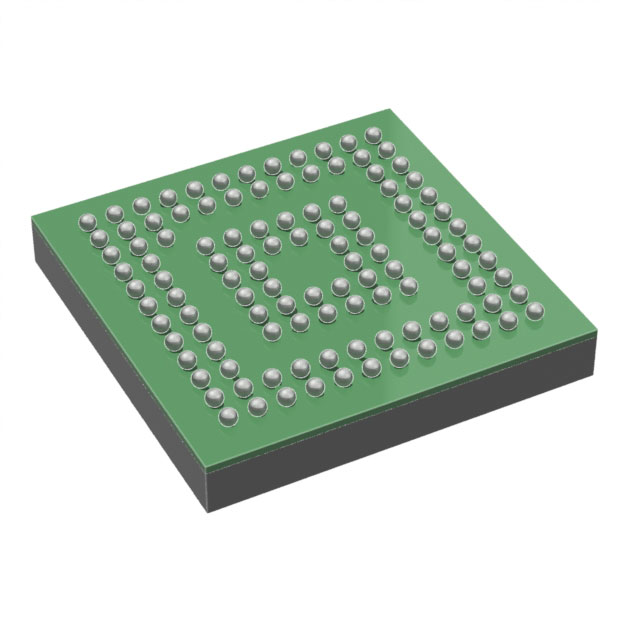

Package/Housing: 113-VFBGA

Supplier Device Package: 113-NFBGA (7x7)

Applications

● Analogue and digital sensor systems

● Digital motor control

● Remote controls

● Thermostats

● Digital timers

● Handheld metering instruments
