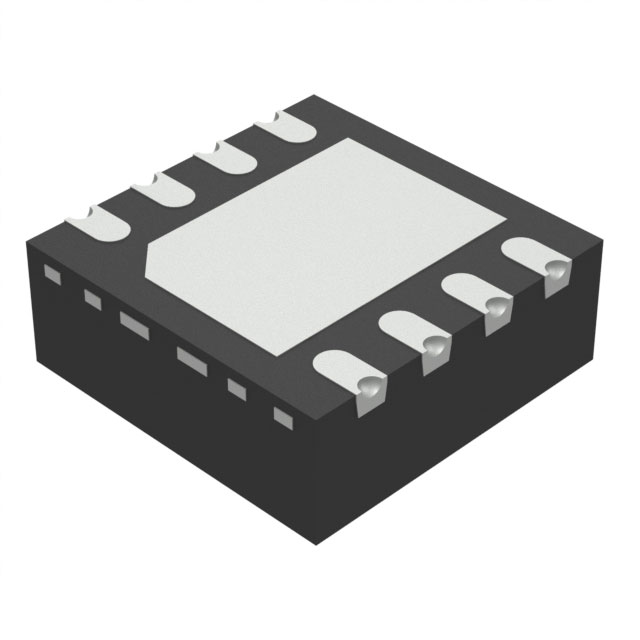

The TPS78418BQWDRBRQ1 is an automotive 300mA, low IQ, high PSRR LDO regulator with high precision and enabling capabilities. With low output noise and excellent PSRR performance, the device is suitable for powering sensitive analog loads. The device is ideal for automotive audio hosts, hybrid instrument groups, telematics control units, DC/DC converters, etc.

specification

Output configuration: positive

Output type: Fixed

Voltage regulator number: 1

Voltage - Input (Max) : 6V

Voltage - Output (min/fixed) : 1.8V

Voltage - Output (Max) : -

Voltage drop (Max.) : 0.32V @ 300mA

Current - Output: 300mA

Current-static (Iq) : 40 µA

PSRR: 60dB ~ 30dB (1kHz ~ 1MHz)

Control feature: Current limiting, enabled

Protection function: overcurrent, overtemperature, UVLO

Operating temperature: -40°C ~ 150°C (TJ)

Mounting type: Surface mount, wets flanks

Package/housing: 8-VDFN bare pad

Supplier Device package: 8-SON (3x3)
