The TPS7A8301ARGRR is a low-noise, low-drop linear regulator (LDO) that delivers 2A current with a maximum voltage drop of only 200mV. The device's combination of low noise, high PSRR and high output current capabilities makes it ideal for supplying noise-sensitive components in high-speed communications, video, medical or test and measurement applications.

specification

Output configuration: positive

Output type: Adjustable

Voltage regulator number: 1

Voltage - input (Max) : 6.5V

Voltage - Output (min/fixed) : 0.5V

Voltage - output (Max) : 5.2V

Voltage drop (Max.) : 0.3V@2A

Current - Output: 2A

Current-static (Iq) : 4 mA

Current - Power supply (Max) : 5 mA

PSRR: 42dB ~ 25dB (10kHz ~ 500kHz)

Control characteristics: current limit, enable, good power supply, soft start

Protection function: Over current, over temperature, Under voltage lock (UVLO)

Operating temperature: -40°C ~ 125°C (TJ)

Mounting type: Surface mount type

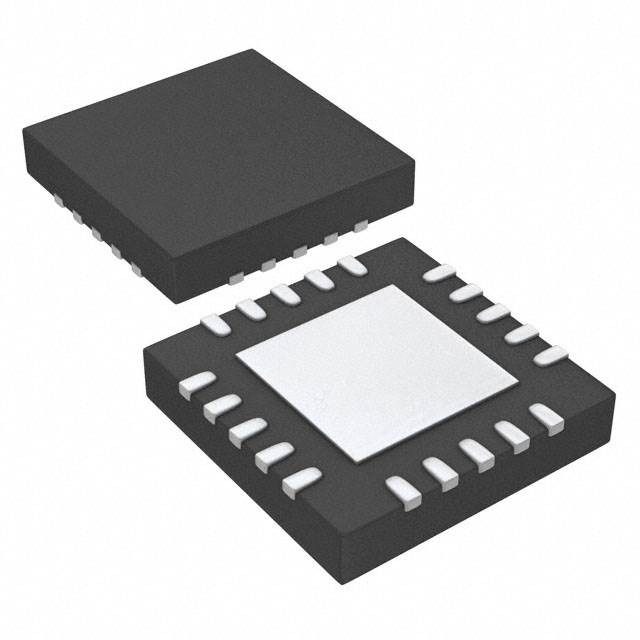

Package/housing: 20-VFQFN bare pad

Supplier Device package: 20-VQFN (3.5x3.5)
