The TPS785075BQWDRBRQ1 ultra-low dropout regulator (LDO) is a small, low quiescent current LDO that delivers 1 A with excellent line and load transient performance. Low output noise and excellent PSRR performance make the device suitable for power-sensitive analogue loads. This is because the device supports an input voltage range of 1.7 V to 6.0 V and offers an adjustable output range of 1.2 V to 5.0 V. The output range is 1.2 V to 5.0 V. The output range is 1.2 V to 5.0 V. The output range is 1.2 V to 5.5 V. The device also has a fixed output voltage of 0.65 V to 5.0 V. A fixed output voltage of 5.0 V is available to power a universal voltage rail.

Product Attributes

Output Configuration: Positive

Output Type: Fixed

Number of regulators: 1

Voltage - Input (Max): 6V

Voltage - Output (Min/Fixed): 0.75V

Voltage Drop (Max): 1.13V @ 1A

Current - Output: 1A

Current - Static (Iq): 40 µA

PSRR: 60dB ~ 30dB (1kHz ~ 1MHz)

Control Features: Current Limit, Enable

Protection Functions: Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount, Wettable Sides

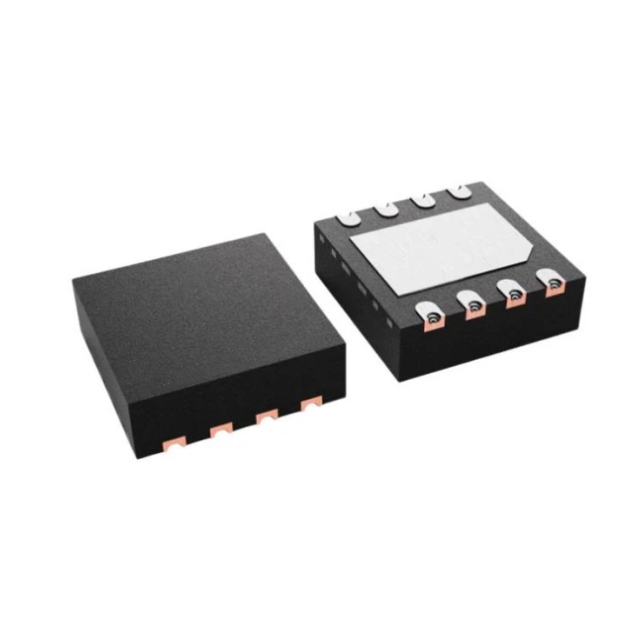

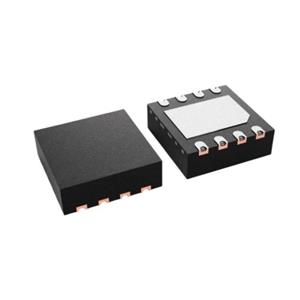

Package/Shell: 8-VDFN Exposed Pad

Supplier Device Package; 8-SON (3x3)

Applications

● Automotive OEMs

● Hybrid instrument clusters

● Telematics control units

● Short- and medium-range radar

● DC/DC converters
