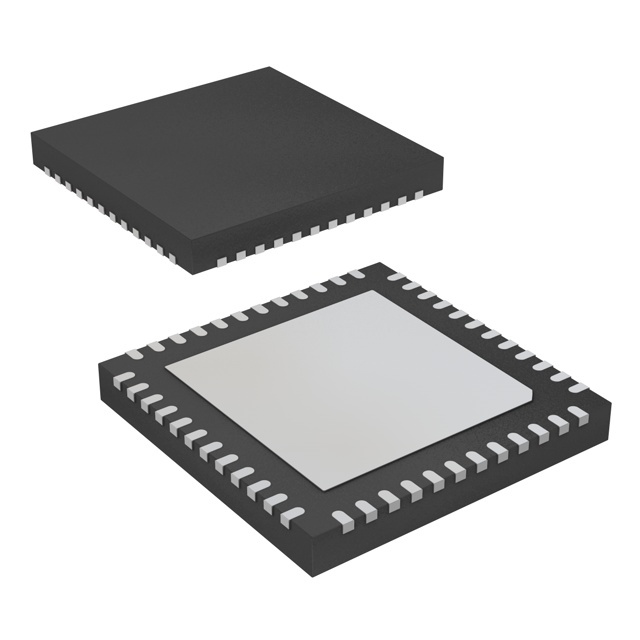

The CC430F5137IRGZR combines the superior performance of the state-of-the-art CC1101 sub-1GHz RF transceiver with the MSP430™ CPUXV2 16-bit RISC CPU. The device features the powerful MSP430 16-bit RISC CPU, 16-bit registers and constant generators to help maximise code efficiency.The CC430 family enables tight integration between the microcontroller core, peripherals, software and RF transceiver, making these system-on-chip solutions not only easy to use, but also performance-enhancing.

Product Attributes

Type: TxRx + MCU

RF Family/Standard: Universal ISM < 1GHz

Modulation: 2FSK, 2GFSK, ASK, MSK, OOK

Frequency: 300MHz ~ 348MHz, 389MHz ~ 464MHz, 779MHz ~ 928MHz

Data Rate (Max): 500kBaud

Power - Output: 13dBm

Sensitivity: -117dBm

Memory Capacity: 32kB Flash, 4kB SRAM

Serial Interfaces: I²C, IrDA, JTAG, SPI, UART

GPIO: 30

Voltage - Supply: 2V ~ 3.6V

Current - Receive: 15mA ~ 18.5mA

Current - Transmit: 15mA ~ 36mA

Operating Temperature: -40°C ~ 85°C

Mounting Type: Surface Mount

Package/Shell: 48-VFQFN Exposed Pad

Supplier Device Package: 48-VQFN (7x7)

Applications

● Wireless analogue and digital sensor systems

● Consumer/personal networking

● Industrial remote monitoring

● Portable medical

● Asset tracking

● Energy Harvesting

● Automatic Metering Infrastructure (AMI)

● Alarm and security systems

● Thermostats
