The CC1310F64RSMR ultra-low power wireless microcontroller is a cost-effective, ultra-low power sub-1GHz RF device. It integrates a flexible, very low power RF transceiver and a powerful 48MHz Cortex-M3 microcontroller on a platform that supports several physical layers and RF standards. It has a dedicated radio controller (Cortex-M0) responsible for low-order RF protocol commands stored in ROM or RAM, ensuring ultra-low power consumption and flexibility.

Product Attributes

Type: TxRx + MCU

RF family/standard: Universal ISM < 1GHz

Modulation: DSSS, GFSK

Frequency: 300MHz ~ 930MHz

Data Rate (Max): 50kbps

Power - Output: 14dBm

Sensitivity: -124dBm

Memory Capacity: 64kB Flash, 16kB RAM

Serial Interfaces: I²C, I²S, JTAG, SPI, UART

GPIO: 10

Voltage - Supply: 1.8V ~ 3.8V

Current - Receive: 5.5mA

Current - Transmit: 12.9mA ~ 22.6mA

Operating Temperature: -40°C ~ 85°C

Mounting Type: Surface Mount

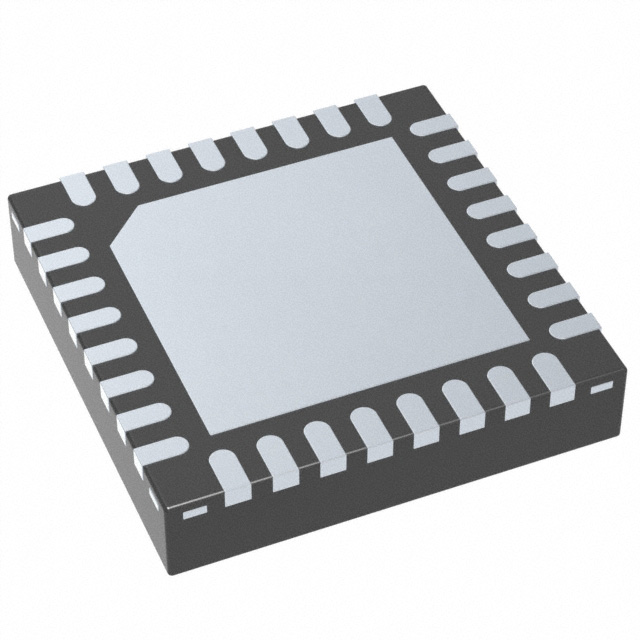

Package/Shell: 32-VFQFN Exposed Pad

Supplier Device Package: 32-VQFN (4x4)

Applications

● Low-power wireless systems with channel spacing from 50kHz to 5MHz

● Smart grid and automated meter reading

● Home and building automation

● Wireless alarm and security systems

● Industrial monitoring and control

● Wireless healthcare applications
