The ATMEGA64RFR2-ZUR's AVR core combines a rich instruction set with 32 general-purpose operating registers. 32 registers are directly connected to the Algorithmic Logic Unit (ALU). Two independent registers can be accessed by executing one instruction in one clock cycle. The resulting architectural code is very efficient, while throughput is up to 10 times faster than traditional CISC microcontrollers. The system includes internal voltage regulation as well as advanced power management. Extended battery life is possible due to low leakage current.

Product Attributes

Type: TxRx + MCU

RF family/standard: 802.15.4

Protocol: Zigbee®

Modulation: DSSS, O-QPSK

Frequency: 2.4GHz

Data Rate (Max): 2Mbps

Power - Output: 3.5dBm

Sensitivity: -100dBm

Memory Capacity: 64kB Flash, 2kB EEPROM, 8kB SRAM

Serial Interfaces: I²C, JTAG, SPI, USART

GPIO: 35

Voltage - Supply: 1.8V ~ 3.6V

Current - Receive: 5mA ~ 12.5mA

Current - Transmit: 8mA ~ 14.5mA

Operating Temperature: -40°C ~ 85°C

Mounting Type: Surface Mount

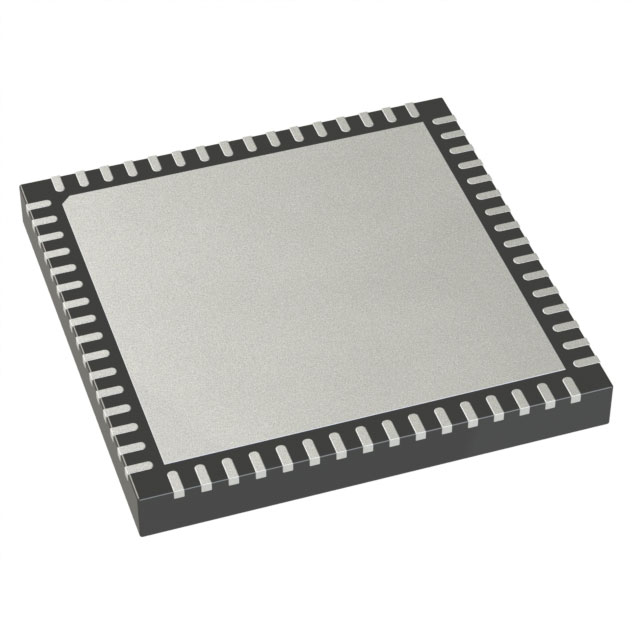

Package/Shell: 64-VFQFN Exposed Pad

Supplier Device Package: 64-QFN (9x9)

Applications

● ZigBee/IEEE 802.15.4-2011/2006/2003 - Full-featured and Simplified Function Devices

● Universal 2.4GHz ISM band transceiver with microcontroller

● RF4CE, SP100, WirelessHART™, ISM applications and IPv6/6LoWPAN
