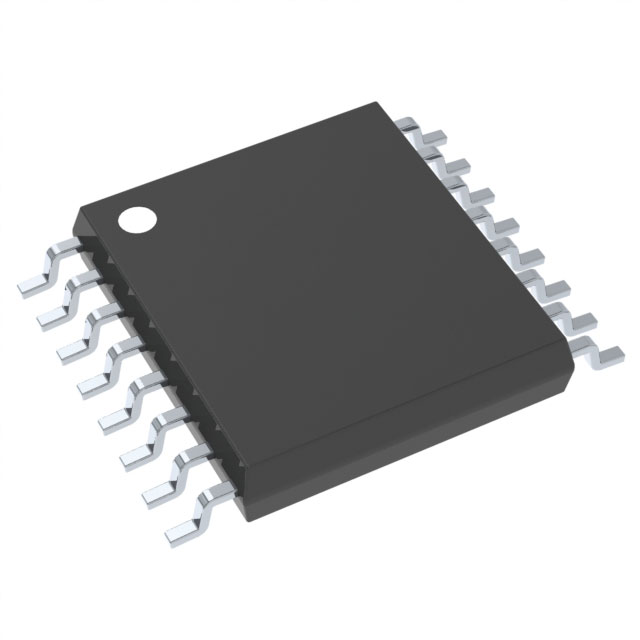

ADS122U04IPWR is a precision, 24-bit, analog-to-digital converter (ADC) that offers many integrated features to reduce system cost and component count in applications measuring small sensor signals.

Product Features

Current Consumption as Low as 315 µA (typ)

Wide Supply Range: 2.3 V to 5.5 V

Programmable Gain: 1 to 128

Programmable Data Rates: Up to 2 kSPS

Up to 20 Bits Effective Resolution

Simultaneous 50-Hz and 60-Hz Rejection at 20 SPS With Single-Cycle Settling Digital Filter

Two Differential or Four Single-Ended Inputs

Dual-Matched Programmable Current Sources: 10 µA to 1.5 mA

Internal 2.048-V Reference: 5 ppm/°C (typ) Drift

Internal 2% Accurate Oscillator

Internal Temperature Sensor: 0.5°C (typ) Accuracy

Three General-Purpose Inputs/Outputs

Package: 3.0-mm × 3.0-mm × 0.75-mm WQFN

Applications

Sensor Transducers and Transmitters: Temperature, Pressure, Strain, Flow

PLC and DCS Analog Input Modules

Temperature Controllers

Climate Chambers, Industrial Ovens

Patient Monitoring Systems: Body Temperature, Blood Pressure
