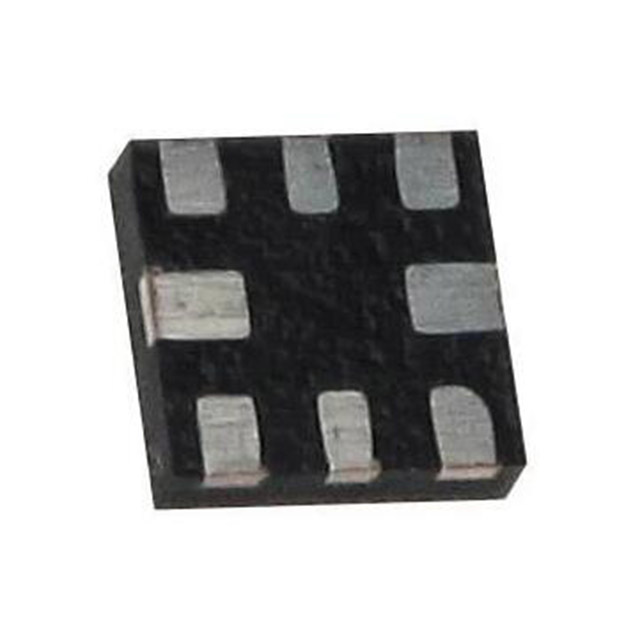

ADS7046IRUGR belongs to a family of pin-to-pin compatible, high-speed, low-power, single-channel successive-approximation register (SAR) type analog to digital converters (ADCs).

Product Features

3-MSPS Throughput

Small Package Size: X2QFN-8 Package (1.5 mm × 1.5 mm)

Unipolar Input Range: 0 V to AVDD

Wide Operating Range:

– AVDD: 2.35 V to 3.6 V

– DVDD: 1.65 V to 3.6 V (Independent of AVDD)

– Temperature Range: –40°C to +125°C

Excellent Performance:

– 12-Bit NMC DNL, ±0.3-LSB INL

– 71.2-dB SINAD at 2 kHz

– 69.5-dB SINAD at 1 MHz

Low Power Consumption:

– 3.8 mW at 3 MSPS With 3.3-V AVDD

– 115 µW at 100 kSPS With 3.3-V AVDD

– 67 µW at 100 kSPS With 2.5-V AVDD

Integrated Offset Calibration

SPI-Compatible Serial Interface: 60 MHz

Applications

Optical Encoders

Sonar Receivers

Fish Finders

I-Q Demodulators

Optical Line Cards and Modules

Thermal Imaging Cameras

Ultrasonic Flow Meters

Handheld Radios
