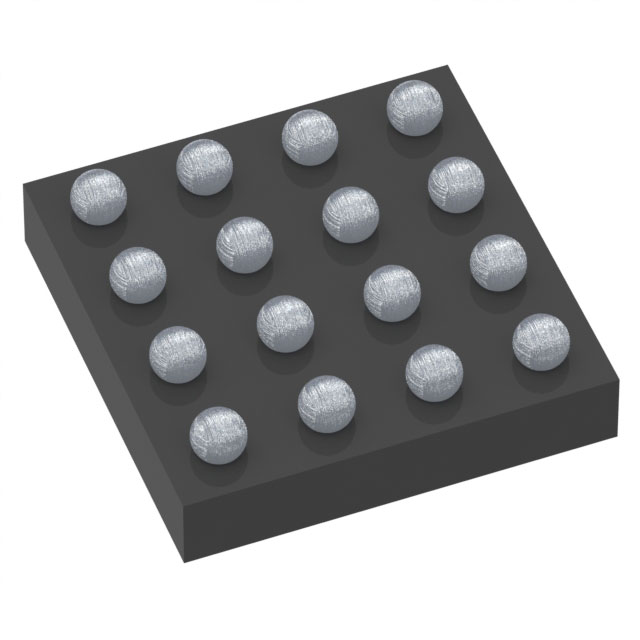

ADS7066IYBHR is a small, 16-bit, 8-channel, high-precision successive-approximation register (SAR) analog-to-digital converter (ADC).

Product Features

8 channels configurable as any combination of: Up to 8 analog inputs, digital inputs, or digital outputs

Programmable averaging filters:

– Programmable sample size for averaging

– Averaging with internal conversions

– 20-bit resolution for average output

Low-leakage multiplexer with channel sequencer:

– Manual mode, on-the-fly mode, and autosequence mode

Excellent AC and DC performance:

– SNR: 91.9 dB, THD: –100 dB

– Improved SNR with programmable averaging filters

– INL: ±1 LSB, 16-bit no missing codes

– Internal calibration improves offset and drift

– 250 kSPS sample rate with no latency

Wide operating range:

– ADC input range: 0 V to VREF and 2 × VREF

– Analog supply: 3 V to 5.5 V

– Digital supply: 1.65 V to 5.5 V

– Temperature range: –40°C to +125°C

Enhanced-SPI digital interface: High-speed, 60-MHz SPI

Applications

Optical modules

Optical line cards

Multiparameter patient monitors
