ADS8588SIPM is an 8-channel, integrated data acquisition (DAQ) system based on a simultaneous-sampling, 16-bit successive approximation (SAR) analog-to-digital converter (ADC) operating at a maximum of 200 kSPS per channel.

Product Features

16-Bit ADC with Integrated Analog Front-End

Simultaneous Sampling: 8-Channels

Pin-Programmable Bipolar Inputs: ±10 V and ±5 V

High Input Impedance: 1 MΩ

5V Analog Supply: 2.3V to 5V I/O Supply

Overvoltage Input Clamp with 7kV ESD

Low-Drift, On-Chip Reference (2.5 V) and Buffer

Excellent Performance:

– 200-kSPS Max Throughput on All Channels

– DNL: ±0.35 LSB; INL: ±0.45 LSB

– SNR: 96.4 dB; THD: −114 dB

Over Temperature Performance:

– Max Offset Drift: 3 ppm/°C

– Gain Drift: 6 ppm/°C

On-Chip Digital Filter for Oversampling

Flexible Parallel, Byte, and Serial Interface

Temperature Range: –40°C to +125°C

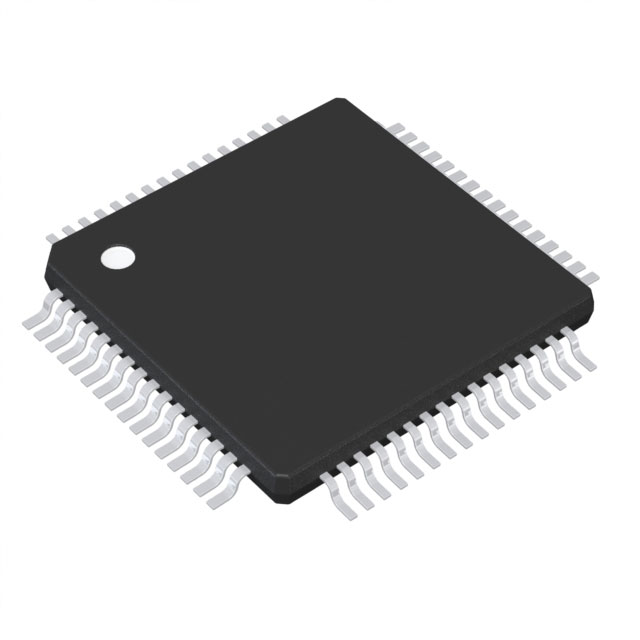

Package: 64-Pin LQFP

Applications

Monitoring and Control for Power Grids

Protection Relays

Multi-Phase Motor Controls

Industrial Automation and Controls

Multichannel Data Acquisition Systems
