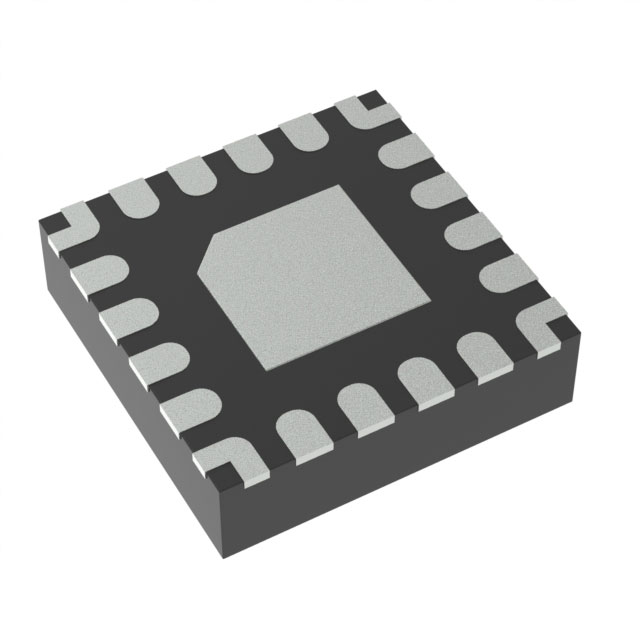

For picture reference, please see the specifications
< >

Commodity Model:TLV320ADC6120IRTER

Trade Name:TLV320ADC6120IRTER

Data Manual:TLV320ADC6120IRTER.pdf

Brand:TI

Particular Year:23+

Package:20-WQFN

Delivery Date:New original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
TLV320ADC6120IRTER
Package
20-WQFN
Describe
ADC, Audio 7.35k ~ 768k I²C, I²S, TDM

Product Description

TLV320ADC6120IRTER is a Burr-Brown™ high performance, audio analog-to-digital converter that supports simultaneous sampling of up to two analog channels or four digital channels for the pulse density modulation microphone input.


Features

Multichannel high-performance ADC

2-channel analog microphones or line-in

4-channel digital PDM microphones

Up to 2 analog and up to 2 digital microphone channels

ADC line and microphone differential input performance

ADC channel summing mode, DR performance

116-dB, DRE disabled, 2-channel summing

-Differential, 2-VRMS full-scale inputs

Single-ended, 1-VRMS full-scale inputs

ADC sample rate (fs)= 8 kHz to 768 kHz

Programmable channel settings

Channel gain: 0 dB to 42 dB, 0.5-dB steps

Digital volume control: - -100 dB to 27 dB

Gain calibration with 0.1-dB resolution

Phase calibration with 163-ns resolution

Programmable microphone bias or supply voltage generation

Low-latency signal processing flter selection

Programmable HPF and biquad digital filters

Automatic gain controller (AGC)

Voice activity detection (VAD)

I2C control interface

Integrated high-performance audio PLL

Automatic clock divider setting configurations

Audio serial data interface

Master or slave interface

Single-supply operation: 3.3 Vor 1.8 V

l/O-supply operation: 3.3V or 1.8 V

Power consumption for 1.8-V AVDD supply

9.5 mW/channel at 48-kHz sample rate


Applications

Smart speakers

IP network cameras

Professional microphones and wireless systems

Video conference systems
