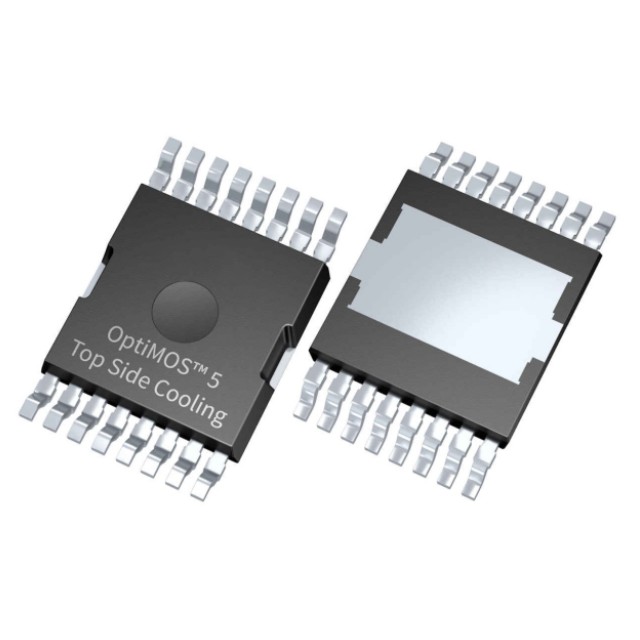

The IAUS260N10S5N019T is a 1.9 mΩ top-cooled 100 V MOSFET in TOLT package featuring Infineon's leading OptiMOS™-5 technology. In contrast to other products, this device is designed for 48V applications. Together with other 48V auxiliary devices, it can be used in applications such as climate e-compressors, e-turbines, and 48V pumps and fans.

Product Attributes

Product Category: MOSFETs

Technology: Si

Mounting Style: SMD/SMT

Package / Case: HSOG-8

Transistor polarity: N-Channel

Number of channels: 1 Channel

Vds-Drain-source breakdown voltage: 100 V

Id-Continuous drain current: 250 A

Rds On-drain on-resistance: 1.9 mOhms

Vgs - gate-source voltage: - 20 V, + 20 V

Vgs th - gate-source threshold voltage: 3.8 V

Qg - gate charge: 128 nC

Minimum operating temperature: - 55 C

Maximum operating temperature: + 175 C

Pd-power dissipation: 300 W

Channel mode: Enhancement

Feature Description

OptiMOSTM5 - Power MOSFET for Automotive Applications

N-Channel - Enhanced Mode - Normal Levels

AEC Q101 certified

MSL1 Peak Reflow Temperature up to 260°C

175°C Operating Temperature

Green product (RoHS compliant)

100% avalanche tested
