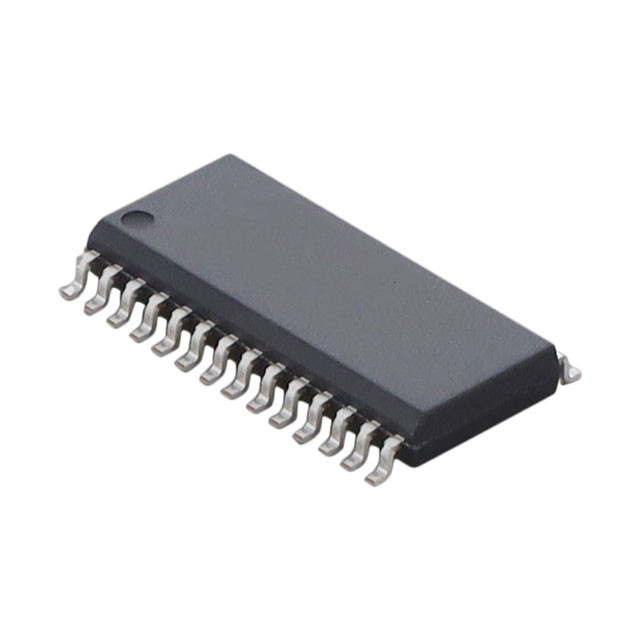

The PIC18F26Q71-I/SO 28-pin microcontroller comes in a SOIC package with three 16-bit dual PWM outputs, four direct memory access channels, eight configurable logic units (CLCS), and two UART. A rich set of kernel-independent peripherals enables simple analog configuration and rapid response to system events in a variety of applications, including lighting, motor control, medical, home automation, automotive, and the Internet of Things (Iot).

specification

Core processor: PIC

Kernel specification: 8 bits

Speed: 64MHz

Connection capacity: FIFO, I²C, SPI, UART/USART

Peripheral: Undervoltage detection/reset, DMA, LVD, POR, PWM, WDT

Number of I/ OS: 26

Program storage capacity: 64KB (64K x 8)

Program memory type: Flash

EEPROM capacity: 256 x 8

RAM size: 4K x 8

Voltage - power supply (Vcc/Vdd) : 1.8V ~ 5.5V

Data converter: A/D 24x12b SAR; D/A 2x8b, 1x10b

Oscillator type: external, internal

Operating temperature: -40°C ~ 85°C (TA)

Mounting type: Surface mount type

Package/Housing: 28-SOIC (0.295", 7.50mm wide)

Supplier device package: 28-SOIC
