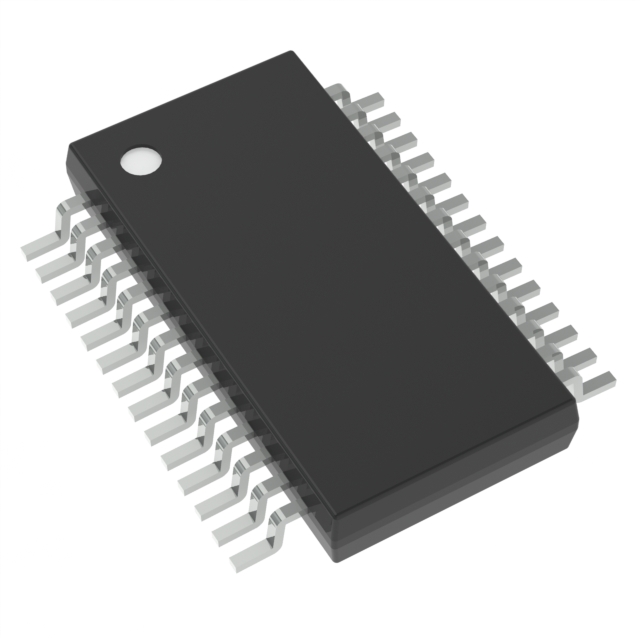

For picture reference, please see the specifications
< >

Commodity Model:DSPIC33CK32MC102-E/SS

Trade Name:DSPIC33CK32MC102-E/SS

Data Manual:DSPIC33CK32MC102-E/SS.pdf

Brand:Microchip

Particular Year:23+

Package:28-SSOP

Delivery Date:New and Original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Microchip
Model
DSPIC33CK32MC102-E/SS
Package
28-SSOP
Describe
16-Bit Digital Signal Controller with High-Speed ADCs, Op Amps, Comparators and High-Speed PWMs Comparator and High Speed PWM

Product Description

The DSPIC33CK32MC102-E/SS 16-bit Digital Signal Controller (DSC) is designed to integrate the control attributes of an MCU with the computational power of a DSP in a single core. Featuring a 16-bit CPU, high-resolution PWM, CAN Flexible Data (CAN FD), internal oscillator, low-power management modes, high-speed ADC module, and debugger development support, the 16-bit CPU features an improved Harvard architecture with an enhanced instruction set and support for digital signal processing (DSP). There is an internal flash programme memory that is readable, writable and erasable during normal operation (over the full VDD range). The flash memory stores and executes application code.


Product Attributes

Core processor: dsPIC

Core specification: 16-bit

Speed: 100MHz

Connectivity: I²C, IrDA, LINbus, SPI, UART/USART

Peripherals: Undervoltage Detect/Reset, DMA, Motor Control PWM, POR, PWM, QEI, Smart Card, WDT

Number of I/O: 21

Program memory capacity: 32KB (32K x 8)

Program memory type: Flash

RAM Size: 8K x 8

Voltage - Supply (Vcc/Vdd): 3V ~ 3.6V

Data Converter: A/D 11x12b; D/A 1x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

Package/Case: 28-SSOP (0.209", 5.30mm wide)

Supplier Device Package: 28-SSOP
