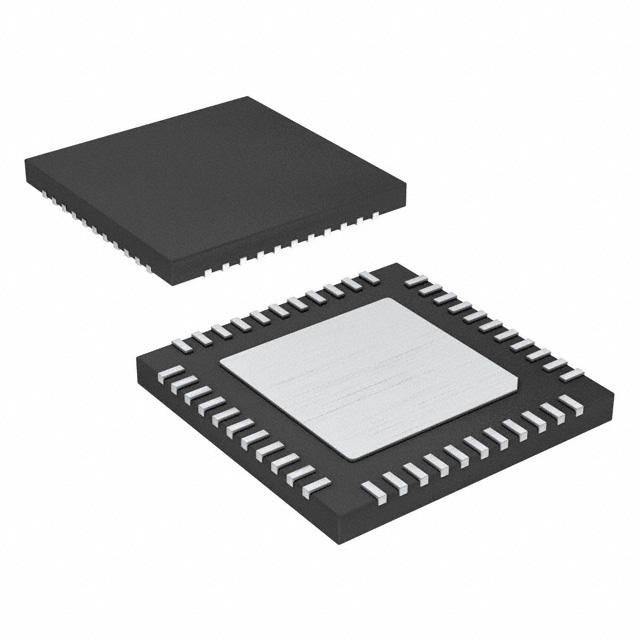

PIC18F45K42T-I/ML is 44-Pin, Low-Power High-Performance Microcontrollers with XLP Technology. It feature a 12-bit ADC with Computation (ADC2) automating Capacitive Voltage Divider (CVD) techniques for advanced touch sensing, averaging, filtering, oversampling and threshold comparison, Temperature Sensor, Vectored Interrupt Controller with fixed latency for handling interrupts, System Bus Arbiter, Direct Memory Access capabilities, UART with support for Asynchronous, DMX, DALI and LIN transmissions, SPI, I2C, memory features like Memory Access Partition (MAP) to support customers in data protection and bootloader applications, and Device Information Area (DIA) which stores factory calibration values to help improve temperature sensor accuracy.

Product Features

Up to 128 KB Flash Program Memory

Up to 8 KB Data SRAM Memory

Up to 1 KB Data EEPROM

Operating Speed:

- Up to 64 MHz clock input

- 62.5 ns minimum instruction cycle

Two Direct Memory Access (DMA) Controllers

Temperature Range:

- Industrial: -40°C to 85°C

- Extended: -40°C to 125°C

Sleep mode: 60 nA @ 1.8V, typical

Secondary Oscillator: 580 nA @ 32 kHz

Operating Current:

- 5 uA @ 32 kHz, 1.8V, typical

- 65 uA/MHz @ 1.8V, typical

Peripheral Pin Select (PPS): Enables pin mapping of digital I/O

Signal Measurement Timer (SMT): 24-bit timer/counter with prescaler
