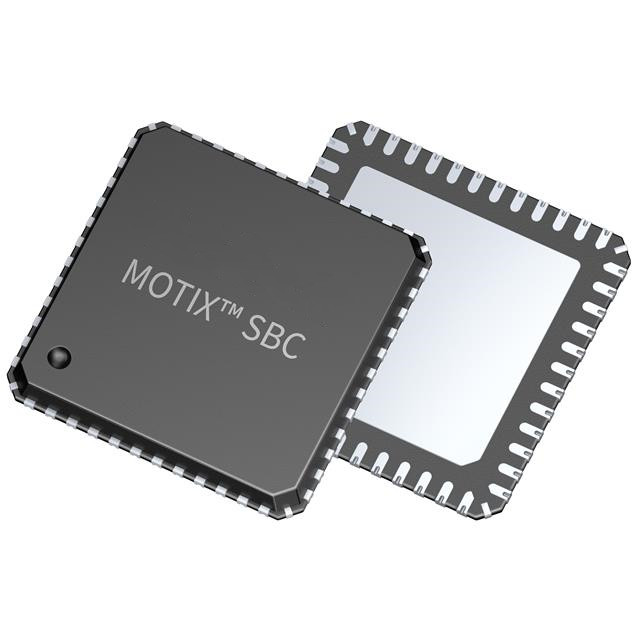

The TLE95613QXXUMA1 DC Motor System IC combines DC motor control with power functions such as power supply, CAN FD and LIN. The IC is highly integrated and high-performance, and the system cost is optimized for DC motor control applications. The device features an advanced half-bridge gate driver equipped with a power supply and communication power supply.

specification

Motor type - Step: -

Motor type - AC, DC: brushed DC

Features: Driver - fully integrated, control and power level

Output configuration: Front driver - Half bridge (4)

Interface: SPI

Technology: NMOS

Step resolution: -

Application: Automotive grade

Current - Output: 250mA

Voltage - Power supply: 6V ~ 28V

Voltage - load: 6V ~ 28V

Operating temperature: -40°C ~ 150°C (TJ)

Mounting type: Surface mount type

Package/housing: 48-VFQFN bare pad

Supplier device package: PG-VQFN-48-31

Basic product number: TLE95613
