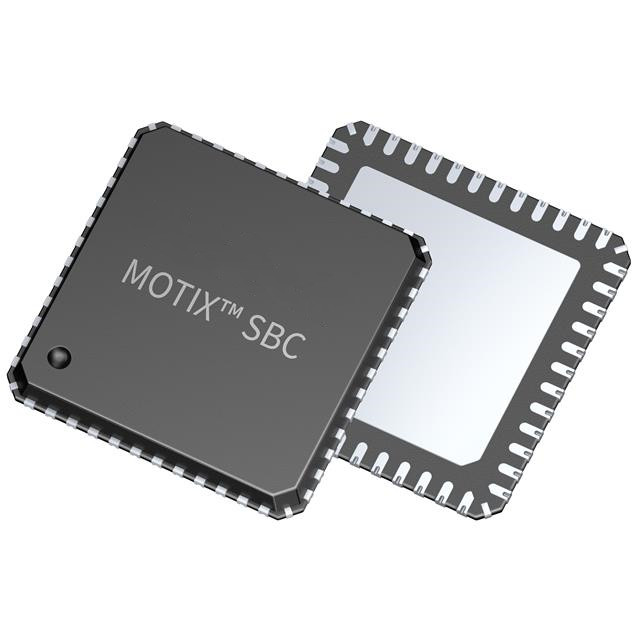

The TLE9562QXXUMA1 device is designed for a variety of motor control automotive applications. To support these applications, the device offers key features such as a 5 V low-voltage differential regulator, an HS-CAN transceiver that supports CAN FD, a Lin transceiver, four half-bridges for DC motor control, and a 32-bit serial peripheral interface (SPI). The device also includes diagnostic and monitoring functions such as drain-source monitoring and open-circuit load detection, short-circuit protection, configurable timeouts and window watchdogs, fail-safe outputs, and overtemperature protection.

specification

Motor type - Step: -

Motor type - AC, DC: brushed DC

Features: Driver - fully integrated, control and power level

Output configuration: Front driver - Half bridge (4)

Interface: SPI

Technology: NMOS

Step resolution: -

Application: Automotive grade

Current - Output: 250mA

Voltage - Power supply: 6V ~ 28V

Voltage - load: 6V ~ 28V

Operating temperature: -40°C ~ 150°C (TJ)

Mounting type: Surface mount type

Package/housing: 48-VFQFN bare pad

Supplier device package: PG-VQFN-48-31

Basic product number: TLE9562
