The PTN3222CUKZ is a 1-port eUSB2 to USB2 redriver IC that converts between eUSB2 and USB2 signalling schemes. It is suitable for systems with an eUSB2 interface on one side and a USB2 interface on the other. It supports host repeater, device repeater, or dual role repeater functions.

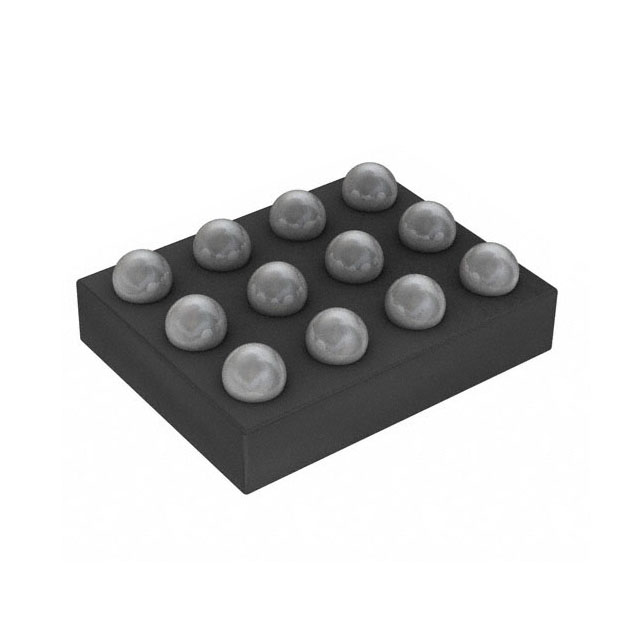

It is powered by two power supplies (VDD3V3, VDD1V8) and is available in a small, thin WLCSP12 package (1.55 mm x 1.18 mm x 0.455 mm body, 0.35 mm pitch).

Product Attributes

Type: Buffer, Adapter Driver

Application: USB

Input: Differential

Output: Differential

Data Rate (Max): 480Mbps

Number of Channels: 1

Delay Time: 3.0ns (max)

Signal Conditioning: Input Equalisation, Output De-Emphasis

Capacitance - Input: 10 pF

Voltage - Supply: 1.62V ~ 1.98V, 2.85V ~ 3.63V

Current - Supply: 55mA

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

Package/Housing: 12-XFBGA, WLCSP

Supplier Device Package: 12-WLCSP (1.55x1.18)

Applications

The eUSB2 to USB2 repeater function is suitable for platforms with Standard A/ Standard B/Micro-B/USB Type-C interfaces (e.g. hosts, devices, hubs, routers, protocol bridges, etc.).
