The PTN3222GMJ device is a 1-port eUSB2 to USB2 adapter driver that enables advanced SoCs on the latest processing nodes to interface with legacy earlier model USB2 devices over longer PCB alignments. With configuration options for both eUSB2 and USB2 signals, the device can be tuned for a wide range of applications.

Product Properties

Type: Buffer, Adapter Driver

Application: USB

Input: Differential

Output: Differential

Data Rate (Max): 480Mbps

Number of Channels: 1

Delay Time: 3.0ns (max)

Signal Conditioning: Input Equalisation, Output De-Emphasis

Capacitance - Input: 10 pF

Voltage - Supply: 1.62V ~ 1.98V, 2.85V ~ 3.63V

Current - Supply: 55mA

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

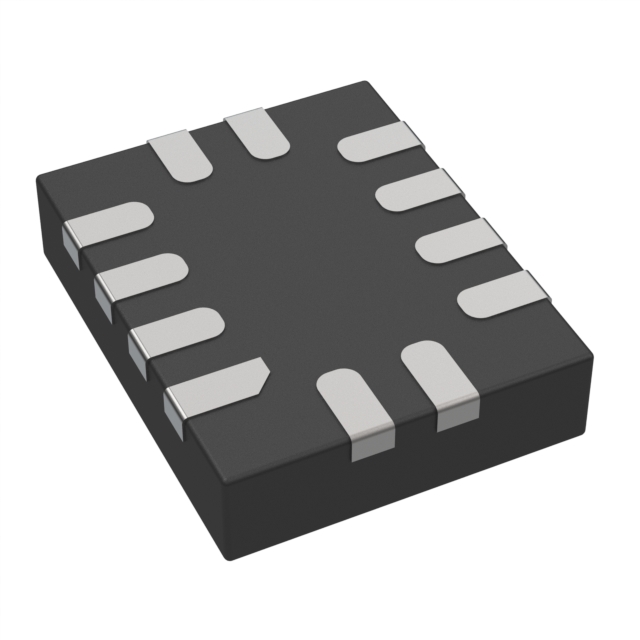

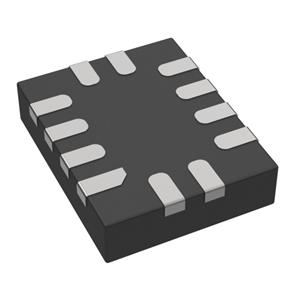

Package/Housing: 12-XFQFN

Supplier Device Package: 12-XQFN (1.75x2.2)

Applications

Mobile devices

Convenient electronic devices

Tablet PCs

Mobile phones

Smartphones

Laptops
