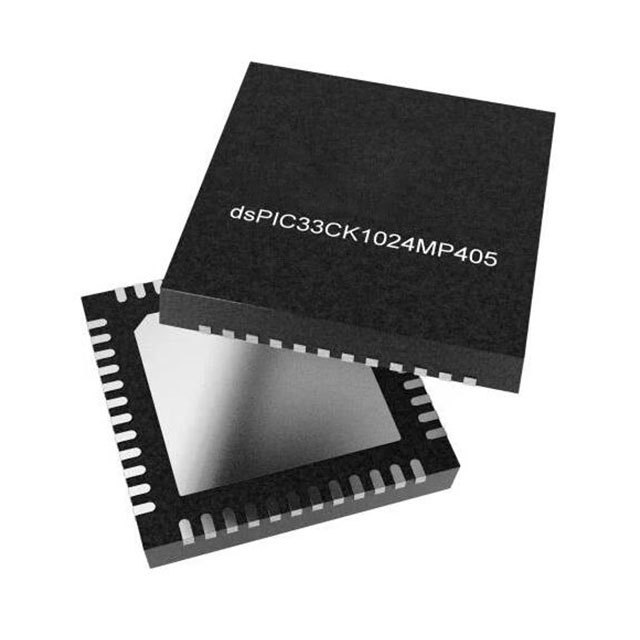

DSPIC33CK1024MP405-E/M7 is High-Performance Digital Signal Controllers with High-Resolution PWM and CAN Flexible Data-Rate (CAN FD).  It can control BLDC, PMSM, ACIM, SR, and stepper motors. Ideal for switched-mode power supplies (AC/DC, DC/DC, UPS, and PFC), the DSCs provide high-precision digital control of Buck, Boost, Fly-Back, Half-Bridge, Full-Bridge, LLC, and other power circuits to reach the highest possible energy efficiency.

Product Features

1024Kbytes of Program Flash with ECC and 128Kbytes of Data RAM

Flash with dual partition for LiveUpdate capabilities

High-resolution PWM with fine edge placement

Up to 12x PWM channels

250ps PWM resolution

8 MHz Backup FRC (BFRC) with a Divider (244 decimal) to provide a Nominal 32.768 kHz Output with a 50% Duty Cycle

Communication interfaces

3x UART modules with support for DMX and LIN/J2602 protocols

3x 4-wire SPI/I2S modules

2x CAN Flexible Data-Rate (FD) modules

3x I2C modules with support for SMBus

PPS to allow function remap

2x SENT modules

8x Direct Memory Acces (DMA) channels

High-Resolution PWM with Fine Edge Placement

Up to Twelve PWM Channels

250 ps PWM Resolution

Applications include:

– DC/DC converters

– AC/DC power supplies

– Uninterruptable Power Supply (UPS)

– Motor Control: BLDC, PMSM, SR, ACIM
