The SimpleLink™ CC2674P106T0RGZR device is a multi-protocol, multi-band 2.4 GHz wireless microcontroller (MCU) that supports Thread, Zigbee, Bluetooth 5.3 low energy, IEEE 802.15.4, Smart Objects with IPv6 support (6LoWPAN), proprietary systems including TI 15.4-Stack (2.4 GHz), and concurrent multi-protocol support through a dynamic multi-protocol manager (DMM) driver. Stack (2.4 GHz)), proprietary systems including TI 15.4-Stack, and concurrent multi-protocol support through the Dynamic Multiprotocol Manager (DMM) driver.

Product Attributes

Type: TxRx + MCU

RF family/standard: 802.15.4, Bluetooth

Protocols: Bluetooth v5.3, Wireless M-Bus, Zigbee

Modulation: DSSS, GFSK, MSK, O-QPSK

Frequency: 2.36GHz ~ 2.5GHz

Data Rate (Max): 3Mbps

Power - Output: 19.5dBm

Sensitivity: -105dBm

Memory Capacity: 1MB Flash, 40kB ROM, 256kB SRAM

Serial Interfaces: GPIO, I²C, I²S, JTAG, SPI, UART

GPIO: 45

Voltage - Supply: 1.8V ~ 3.8V

Current - Receive: 6.4mA

Current - Transmit: 7.3mA ~ 101mA

Operating Temperature: -40°C ~ 105°C

Mounting Type: Surface Mount

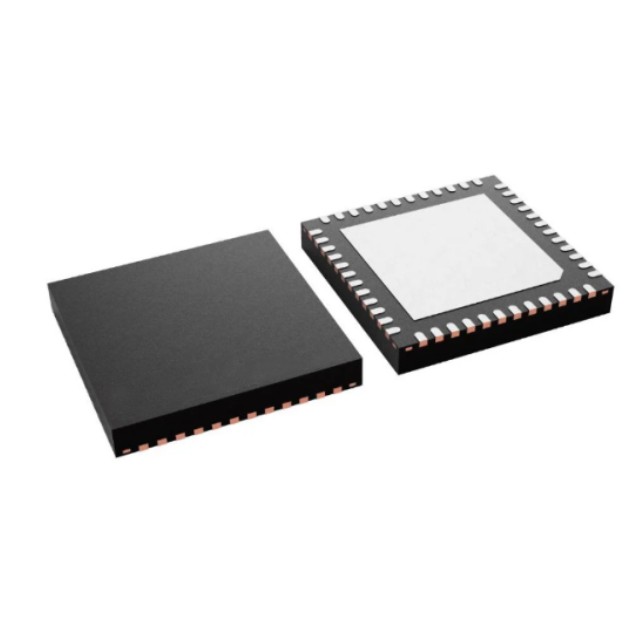

Package/Shell: 48-VFQFN Exposed Pad

Supplier Device Package: 48-VQFN (7x7)

Applications

2400MHz to 2480MHz ISM and SRD systems2 with receive bandwidths down to 4kHz

Building automation

Building security systems including motion detectors, electronic smart locks, door and window sensors, garage door systems and gateways

HVAC - thermostats, wireless environmental sensors, HVAC system controllers, gateways

Fire Protection Systems including smoke and heat detectors and fire alarm control panels (SMP)

Video Surveillance - IP network cameras

Lift and Escalator - Lift master control panels for lifts and escalators

Industrial transport - asset tracking

Factory Automation and Control

Medical

Personal Care and Fitness

Patient monitoring and diagnostics - medical sensor patches, multi-parameter patient monitors

Medical Devices

Home healthcare - blood glucose monitors, pulse oximeters

Electronic Point of Sale (EPOS) - Electronic Shelf Labelling (ESL)

Communication Devices

Wired Networks - Wireless LAN or Wi-Fi Access Points, Edge Routers

Personal Electronics

Portable Electronics - RF Smart Remote Controls

Home Theatre and Entertainment - Smart Speakers, Smart Displays, Set-Top Boxes

Networking Peripherals - Consumer wireless modules, indicating devices, keyboards and keypads

Gaming - Electronic toys and robotic toys

Wearables (non-medical) - Smart trackers, smart clothing
