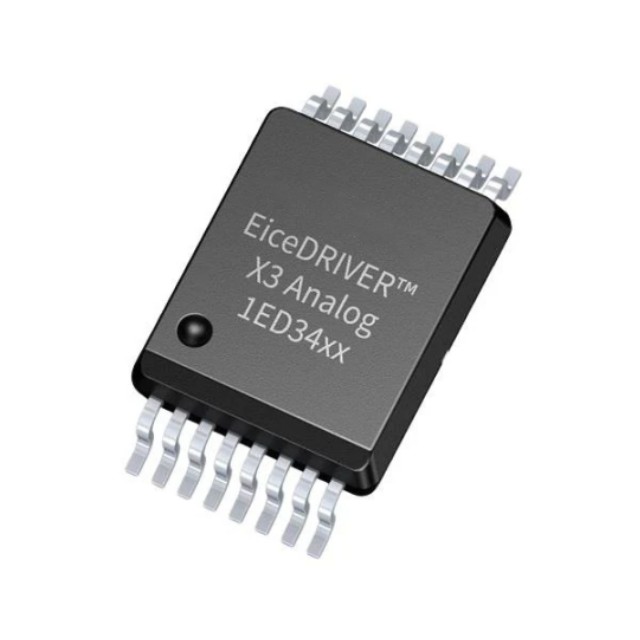

The 1ED3491MU12MXUMA1 consists of galvanically isolated single-channel gate driver integrated circuits in a small PG-DSO-16 package with 8 mm of creepage and clearance.The galvanically isolated single-channel gate driver integrated circuits in the PG-DSO-16 package feature a large 8 mm of creepage and clearance. The gate driver ICs provide typical peak output currents of 3 A, 6 A, and 9 A, respectively, with adjustable control and protection features that simplify the design of high-reliability systems.

Characteristics

● 650 V, 1200 V, 1700 V, 2300 V IGBTs, SiC and Si MOSFETs

● 40 V absolute maximum output supply voltage

● Typical ±3 A, ±6 A, and ±9 A peak sink and sink output currents

● Independent source and sink outputs for hard-switching and active Miller clamp/clamp drivers

● Adjustment pins for parameterisation from inputs

● Accurate VCEsat detection (DESAT) with fault output and adjustable filter time and lead fading time

● Resistors on the ADJB pins

● Resistor on ADJA pin to adjust IGBT soft shutdown after detecting loss of saturation

● Operates at high temperatures up to 125 °C, with over-temperature shutdown at 160 °C (±10 °C)

APPLICATIONS

● Industrial motor drives - compact, standard, advanced servo drives

● Solar inverters

● UPS systems

● Welding

● Commercial and Agricultural Vehicles (CAV)

● Commercial Air Conditioning (CAC)

● High voltage isolated DC-DC converters

● Isolated Switching Power Supplies (SMPS)
