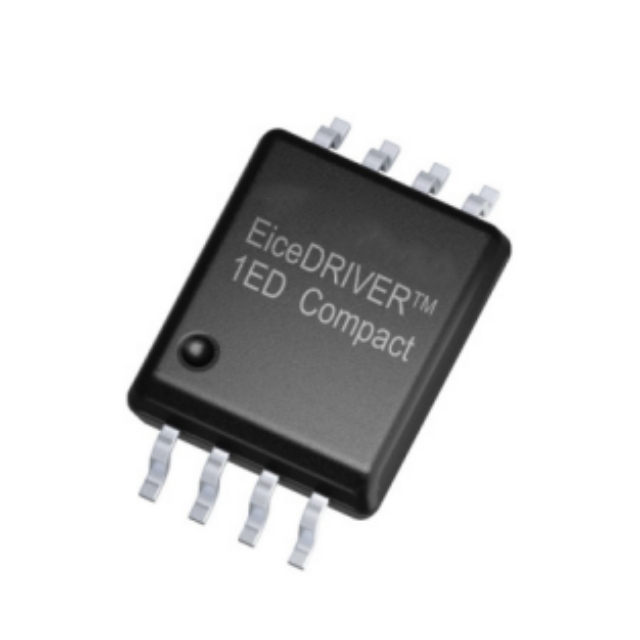

Typical peak output currents for these driver ICs are up to 18 A. This feature controls two independent gate resistors to optimise EMI and switching losses. The family includes standard outputs with 1ED3241MC12HXUMA1 is a group of galvanically isolated single-channel driver ICs in a DSO-8 300 mil package. placement and active Miller-clamped output configurations with the same current rating to prevent parasitic current conduction. The input logic terminals are safe to operate at supply voltage, and all input structures have threshold levels to support 3.3 V microcontrollers.

Product Attributes

Technology: Magnetic coupling

Number of Channels: 1

Voltage - Isolation: 5700 Vrms

Common mode transient immunity (min): 200kV/µs

Propagation Delay tpLH / tpHL (max): 110ns, 110ns

Pulse Width Distortion (max): 5ns

Rise / Fall Time (typical): 9ns, 8.5ns

Current - Output High, Low: 18A, 18A

Current - Peak Output: 18A

Voltage - Output Supply: 10V ~ 35V

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

Package/Shell: 8-SOIC (0.295", 7.50mm Width)

Supplier Device Package: PG-DSO-8-66

Certification Body: UL, VDE

Applications

● AC and brushless DC motor drives

● High voltage DC/DC converters and DC/AC inverters

● UPS systems

● Solar inverters, e.g. for 1500 V (DC) systems
