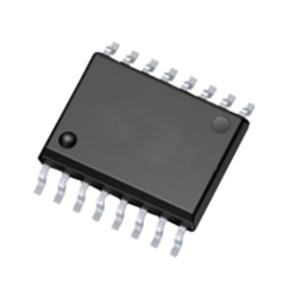

The 2EDR8258XXUMA1 is a family of dual-channel isolated gate driver ICs designed to drive Si and SiC MOSFETs and GaN HEMT power switches. The 2EDR8258XXUMA1 is a family of dual-channel isolated gate driver ICs designed to drive Si and SiC MOSFETs and GaN HEMT power switches. All products are available in a DSO package with 8 mm input-to-output creepage and provide enhanced isolation through on-chip coreless transformer (CT) technology. They are suitable for use in applications with high bus voltages or high contamination levels, and often simplify PCB routing.

Features

● Dual isolated gate driver, 2-channel isolated gate driver for Si and SiC MOSFETs and GaN HEMT power switches

● Fast input-to-output propagation (38 ns) with excellent stability (+9/-5 ns)

● Powerful output stage: 5 A/9 A source/sink

● Fast output clamping for VDDA/B < UVLO

● Fast UVLO recovery time (< 2 μs)

● Four VDDA/B UVLO options: 4 V, 8 V, 12 V, 15 V

● CMTI > 150 V/ns

● Available in 16/14-pin 300 mil DSO package

Applications

● Servers, Telecom SMPS

● Electric vehicle off-board chargers

● Low-voltage drives and power tools

● Solar microinverters, solar optimisers

● Industrial power supplies (SMPS, residential UPS)
