Service Telephone:86-755-83294757
Trade Name:2EDR9259XXUMA1
Data Manual:2EDR9259XXUMA1.pdf
Brand:INFINEON
Particular Year:23+
Package:14-SOIC
Delivery Date:New and Original
Stock: 1000pcs

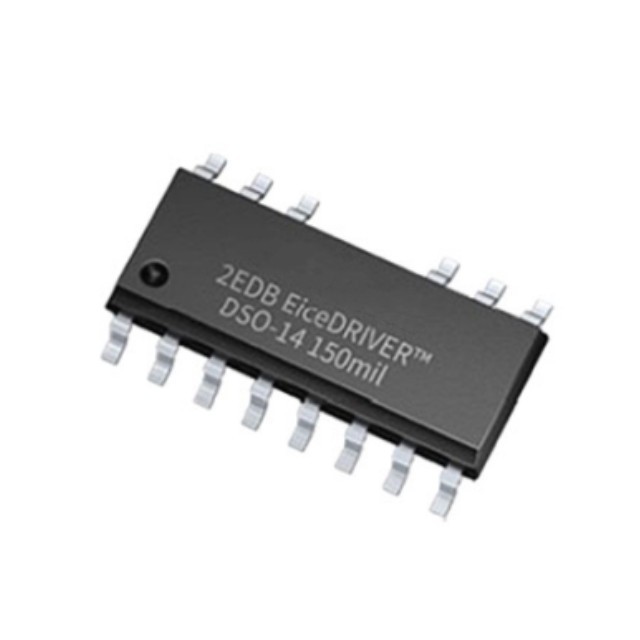

The EiceDRIVER™ 2EDR9259XXUMA1 is a family of dual-channel isolated gate driver ICs designed to drive Si and SiC MOSFETs and GaN HEMT power switches.
Product Attributes
Product Category: Gate Drivers
Product: Isolated Gate Drivers
Type: Half-Bridge
Mounting Style: SMD/SMT
Package / Case: DSO-14
Number of Drivers: 2 Driver
Number of Outputs: 2 Outputs
Output Current: 9 A
Supply Voltage - Min: 3 V
Supply Voltage-Max: 17 V
Rise time: 7.5 ns
Fall time: 6 ns
Minimum operating temperature: - 40 C
Maximum operating temperature: + 125 C
Series: 2EDR8259
Input Voltage (Max): 17 V
Input Voltage (min): 3 V
Logic Type: TTL
Maximum Off Delay Time: 46 ns
Maximum turn-on delay time: 47 ns
Humidity sensitivity: Yes
Output Voltage: 20 V
Product Type: Gate Drivers
Propagation Delay - Max: 47 ns
Rds On-Drain Resistance: 1.5 Ohms
Applications
Servers, telecom SMPS
EV non-vehicle chargers
Low voltage drives and power tools
Solar microinverters and solar optimisers
Industrial power supplies (SMPS, residential UPS)
