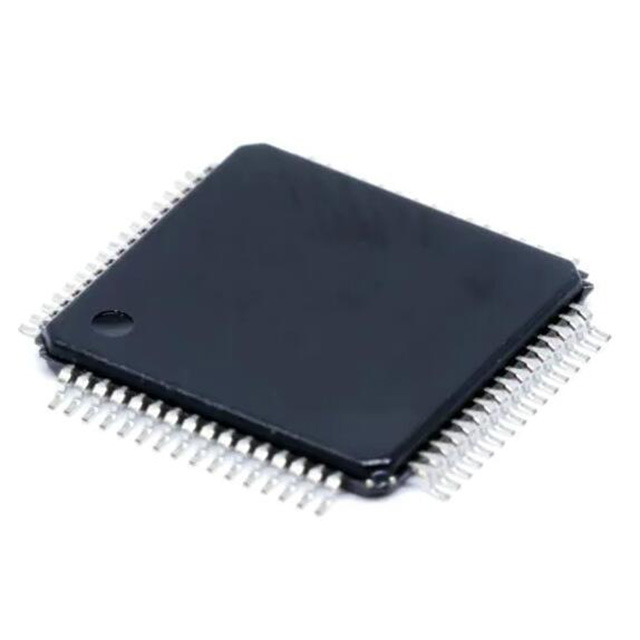

AMC7924PAPR is a highly integrated analog monitor and control device designed for high-density, generalpurpose monitor and control systems.

Product Features

24 monotonic 12-bit DACs

Programmable ranges: –10 V to 0 V,

5 V to 0 V, 0 V to 5 V, and 0 V to 10 V

High current drive capability

Autorange detector

24 inputs, 12-bit SAR ADC

High sample rate: 250 kSPS

Input ranges: 0 V to 5 V and 0 V to 2.5 V

Programmable out-of-range alarms

6 FlexIO pins; ADC and GPIO configurable

Built-in sequencing features

Internal 2.5V reference

Internal temperature sensor

Accuracy: ±2.5°C, maximum

Resolution: 0.0625°C

4-wire, SPI-compatible interface

1.65V to 5.5V operation

Specified temperature range: –40°C to +125°C

Operating temperature range: –40°C to +150°C

Applications

Active antenna system mMIMO (AAS)

Macro remote radio unit (RRU)

Radar

Data acquisition (DAQ)
