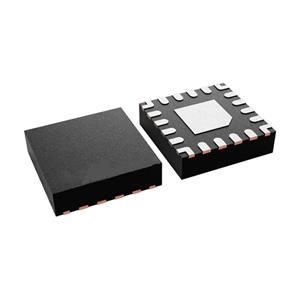

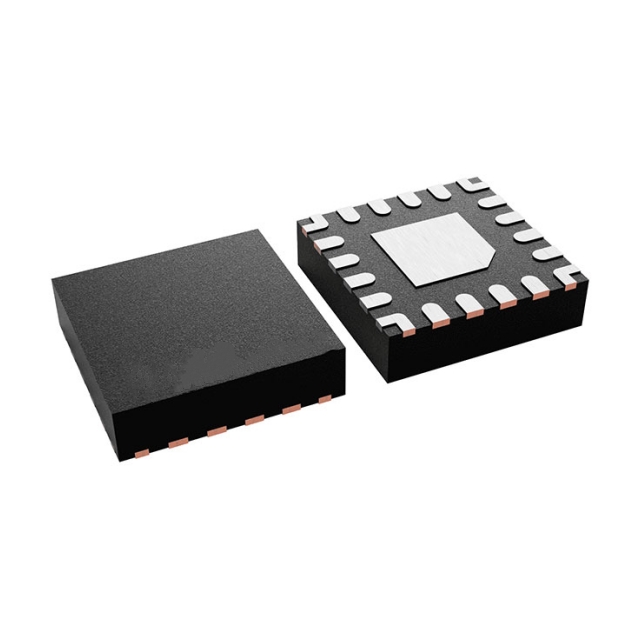

The PCM1822IRTER is a high performance, Burr-Brown™ audio analogue-to-digital converter (ADC) that supports simultaneous sampling of up to two analogue channels. The device supports single-ended and differential line and microphone inputs, has a 1VRMS full-scale signal, integrates a phase-locked loop (PLL) and DC-filtered high-pass filter (HPF), and supports sample rates up to 192 kHz. The device supports Time Division Multiplexing (TDM) or I2S audio formats with selectable hardware pin levels. Master-slave mode selection is also supported for audio bus interface operation.

Features

● Stereo high-performance ADC

● 2-channel analogue microphone or line inputs

● ADC line and microphone differential, single-ended input performance:

● PCM1822 dynamic range

● 117dB (dynamic range enhancer enabled)

● 111dB (Dynamic Range Enhancer disabled)

● THD+N: -95dB

● 1VRMS full scale input

● ADC sample rate (fS) = 8kHz to 192kHz

● Hardware pin control configuration

● Linear phase or low-delay filter selection

Applications

● Smart speakers

● DVD recorders and players

● AV receivers

● Video conferencing systems

● IP network cameras
