The TSV782IDT single gain stabilised amplifier is a 30MHz bandwidth single gain stabilised amplifier. With a rail-to-rail input stage and 20V/µs slew rate. Ideally suited for low-side current measurements, these amplifiers are supplied from a single power supply and operate over a voltage range of 2.0 V to 5.5 V. With a load rating of 47 pF, the device can easily be used as an input buffer for analogue-to-digital converters. Featuring rail-to-rail inputs and outputs with an excellent speed/power ratio, the devices provide a 30kHz gain bandwidth product while consuming only 40μA of current at 5V.

Product Attributes

Amplifier Type: General Purpose

Number of circuits: 2

Output Type: Full Swing

Slew rate: 20V/µs

Gain Bandwidth Product: 30 MHz

Current - Input Bias: 2 pA

Voltage - Input Compensation: 50 µV

Current - Supply: 3.3 mA

Current - Output/Channel: 70 mA

Voltage - Span (min): 2 V

Voltage - Span (Max): 5.5 V

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

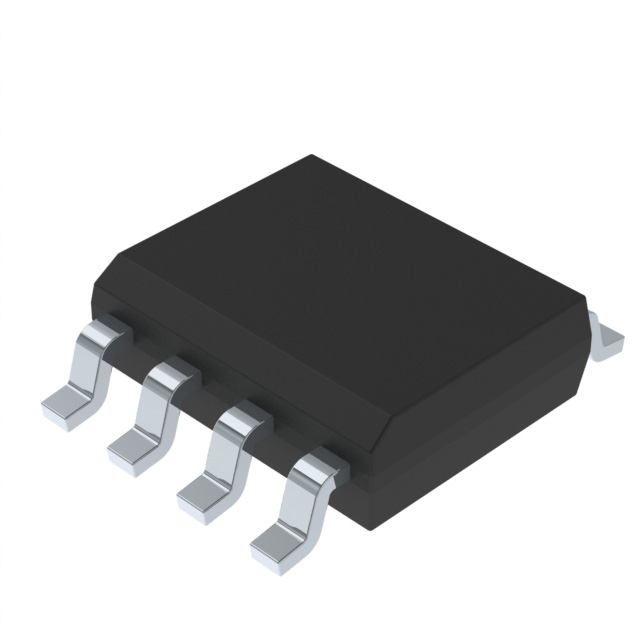

Package/Shell: 8-SOIC (0.154", 3.90mm Width)

Supplier Device Package: 8-SO

Applications

● High-bandwidth low-side and high-side current detection

● Photodiode transimpedance amplification

● Analogue-to-digital converter input buffers

● Power management in solar-powered systems

● HEV and EV power management
