The TPSM82903SISR is a highly efficient, compact, flexible, and easy-to-use synchronous step-down DC/DC converter MicroSiP packaged module. 2.5MHz or 1.0MHz selectable switching frequency supports the use of small components and provides fast transient response. The device utilises the DCS-Control topology to support high VOUT accuracy of ±1%, and a wide input voltage range of 3V to 17V supports a variety of nominal inputs such as 12V supply rails, single or multiple Li-Ion batteries, 5V, or 3.3V supply rails.

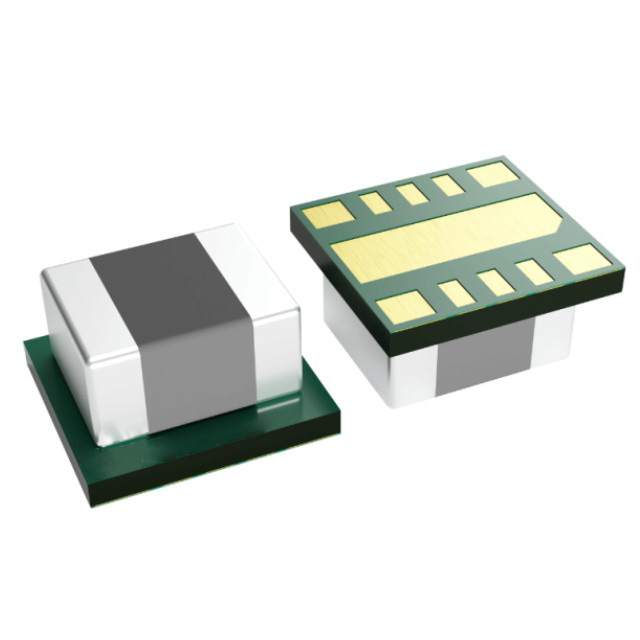

The device is available in a small 11-pin MicroSiP package measuring 3.0mm × 2.8mm × 1.6mm with an integrated 1µH inductor.

Features

- High efficiency over a wide duty cycle and load range

- IQ: 4µA (typical)

- 62mΩ high-side and 22mΩ low-side RDS(ON)

- 3mm × 2.8mm × 1.6mm MicroSiP™ package

- Up to 3A continuous output current

- Feedback voltage accuracy of ±0.9% over the full temperature range (-40°C to 125°C)

- Configurable output voltage options:

- VFB external voltage divider: 0.6V to 5.5V

- VSET internal voltage divider: 16 voltage options (0.4V to 5.5V)

- DCS-Control topology with 100% mode

- Flexibility through MODE/S-CONF pin

- 2.5MHz or 1.0MHz switching frequency

- Forced PWM or automatic (PFM) power save modes with dynamic mode change options

- Automatic Efficiency Enhancement (AEE)

- Output discharge on/off

- Highly flexible and easy to use

- Pinouts optimised for single layer wiring

- Precision enable input

- Power normal state output

- Adjustable soft-start and tracking

- No external bootstrap capacitors required

Applications

- Data centre and enterprise computing

- Wired networks

- Wireless infrastructure

- Factory automation and control

- Test and measurement
