The F2800157QPHPRQ1 supports up to 256KB (128KW) of Flash memory. Up to 36KB (18KW) of on-chip SRAM is also available to supplement the Flash memory. High-performance analogue blocks are integrated on the F2800157QPHPRQ1 real-time microcontroller (MCU) and are tightly coupled to the processing and PWM units to provide excellent real-time signal chain performance. 14 PWM channels are available to control power stages ranging from three-phase inverters to power factor correction, as well as other advanced multistage power topologies.

Product Attributes

Core Processor: TMS320C28x

Core specification: 32-bit dual-core

Speed: 120MHz

Connectivity: CANbus, I²C, SCI, SPI, UART/USART

Peripherals: undervoltage detection/reset, capacitive sensing, I²S, POR, PWM, WDT

Number of I/O: 27

Program memory capacity: 256KB (128K x 16)

Program memory type: Flash

RAM Size: 18K x 16

Voltage - Supply (Vcc/Vdd): 2.8V ~ 3.63V

Data Converter: A/D 18x12b SAR

Oscillator Type: External, Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

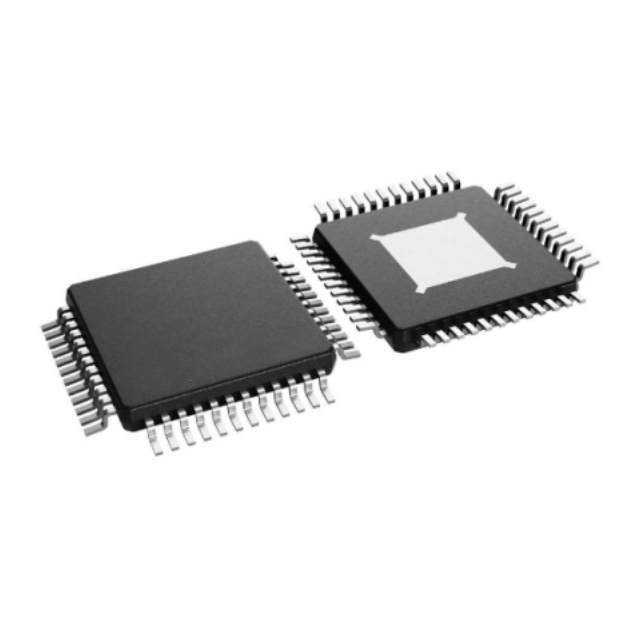

Package/Case: 48-PowerTQFP

Supplier Device Package: 48-HTQFP (7x7)

Applications

● HVAC compressor modules

● Headlamps

● DC/DC converters

● Inverters and motor controls

● On-board chargers (OBC) and wireless chargers

● Pumps

● Industrial motor drives

● Motor Control

● Digital Power

● Sensing and signal conditioning
