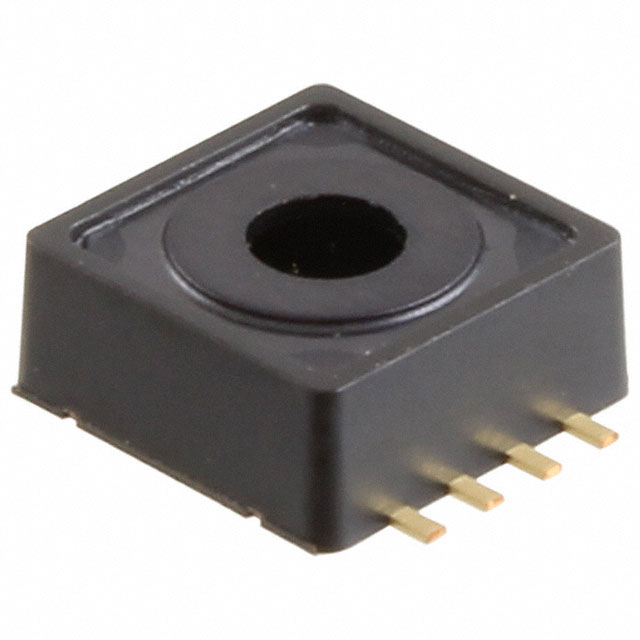

The KP235XTMA1 analogue atmospheric pressure (BAP) sensor provides the same performance when location and altitude change. As the location varies, so does the composition and quality of the surrounding air. As these changes occur, it is critical that the engine needs to respond immediately.Infineon supplies a wide range of pressure sensors for measuring atmospheric pressure, supporting two different interfaces, analogue and digital, as well as varying pressure ranges.

Product properties

Pressure type: Absolute

Operating Pressure: 5.8PSI ~ 16.68PSI (40kPa ~ 115kPa)

Output Type: Analogue Voltage

Output: 0.5V ~ 4.5V

Accuracy: ±0.348PSI (±2.4kPa)

Voltage - Supply: 4.5V ~ 5.5V

Port Style: No Port

Features: Amplified Output, Temperature Compensated

Termination Style: SMD (SMT) Tabs

Maximum Pressure: 21.76PSI (150kPa)

Operating Temperature: -40°C ~ 125°C

Mounting Type: Surface Mount

Package/Housing: 8-SMD Module

Applications

● Automotive applications (atmospheric pressure measurement)

● Industrial control

● Consumer applications

● Medical applications

● Weather stations

● Altimeter
