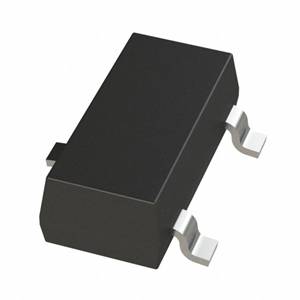

Commodity Model:DRV5021A2EDBZRQ1

Trade Name:DRV5021A2EDBZRQ1

Data Manual:DRV5021A2EDBZRQ1.pdf

Brand:TI

Particular Year:23+

Package:SOT-23-3

Delivery Date:New and Original

Stock: 5000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
TI
Model
DRV5021A2EDBZRQ1
Package
SOT-23-3
Describe
Automotive 2.5-V to 5.5-V Hall Effect Unipolar Switches

Product Description

The DRV5021A2EDBZRQ1 is a low voltage digital switching Hall effect sensor for high speed automotive applications. Powered from a 2.5V to 5.5V supply, the device detects magnetic flux density and provides a digital output based on a predefined magnetic threshold.


The device detects a magnetic field perpendicular to the package face. When the applied magnetic flux density exceeds the magnetic operating point BOP threshold, the open drain output of the device will drive a low voltage. When the flux density falls below the magnetic release point (BRP) threshold, the output becomes high impedance, and the hysteresis created by the separation of the BOP and BRP helps prevent output errors caused by input noise. This configuration allows system designs to be more robust against noise disturbances.


The device maintains excellent performance over a wide ambient temperature range of -40°C to +150°C. The device is designed to be used in a wide variety of applications.


Features

- Ideal for Automotive Electronics Applications

- The following features are compliant with AEC-Q100:

- Device Temperature Class 0: -40°C to 150°C Ambient Operating Temperature Range

- Device HBM ESD Classification 3A

- Device CDM ESD Classification C6

- Digital Unipolar Switching Hall Sensors

- 2.5V to 5.5V Operating VCC Range

- Magnetic Sensitivity Options (BOP, BRP):

- DRV5021A1-Q1: 2.9mT, 1.8mT

- DRV5021A2-Q1: 9.2mT, 7.0mT

- DRV5021A3-Q1: 17.9mT, 14.1mT

- 30kHz high speed sensing bandwidth

- Open-drain output current up to 20mA

- Optimised low voltage architecture

- Integrated hysteresis feature for enhanced noise immunity

- Standard industry packages:

- Standard industry package: Surface Mount SOT-23


Applications

- Automotive transmissions, body shells

- Limit switches

- General proximity sensing

- Brush DC motor feedback

- Door opening and closing detection

- Valve positioning

- Pulse counting

Associated Products

Model

Brand

Package

Quantity

Describe

TLE5046IC-AK-LR

INFINEON

PG-SSO-2

3000

High End GMR Wheel Speed Sensor, PG-SSO-2

TLE4955C-E4

INFINEON

PG-SSO-2

3000

XENSIV™ Magnetic Speed Sensor, PG-SSO-2

TLE4998C8DXUMA1

INFINEON

SOIC-8

1000

Programmable Linear Hall Sensor

TLE5028CXGAD28HAMA1

INFINEON

PG-SSO-3

1000

Digital Switch Special Purpose Analog Voltage Magnetoresistive

TLE5041PLUSCXAMA1

INFINEON

PG-SSO-2

2000

Digital switch specific current source reluctance PG-SSO-2-53

MLX92241LUA-BAA-119-CA

Melexis

TO-92-3

2000

2-wire Hall-effect ASIL A sensor switch IC

TMAG5111B2AQDBVRQ1

TI

SOT-23-5

1000

Automotive, High Sensitivity, 2D, Dual Channel, Speed and Direction Outputs, Hall Effect Latches

DRV5032DUDMRR

TI

4-XFDFN

1000

Ultra Low Power Digital Switching Hall Effect Sensors

MLX92215LST-AAA-000-RE

Melexis

TO-236-3

1000

Board-Machine Interface Hall Effect/Magnetic Sensors

MLX92215KLD-AAA-000-RE

Melexis

6-UTQFN

1000

Board-Machine Interface Hall Effect/Magnetic Sensors
