The TMAG5110B4AQDBVRQ1 are two-dimensional, dual-channel Hall-effect latches that are powered from a 2.5V to 38V supply. Designed for high-speed and high-temperature motor applications, these devices are optimised for applications utilising rotating magnets.

The devices provide consistent and excellent performance over a wide ambient temperature range of -40°C to +125°C.

Product Attributes

Function : Snap pins

Technology: Hall effect

Polarisation: Arctic, South Pole

Sensing range: 5.3mT trip, -5.3mT release

Test Conditions: -40°C ~ 125°C

Voltage - Supply: 2.5V ~ 38V

Current - Supply (Max): 8.5mA

Current - Output (Max): 10mA

Output Type Open Drain

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

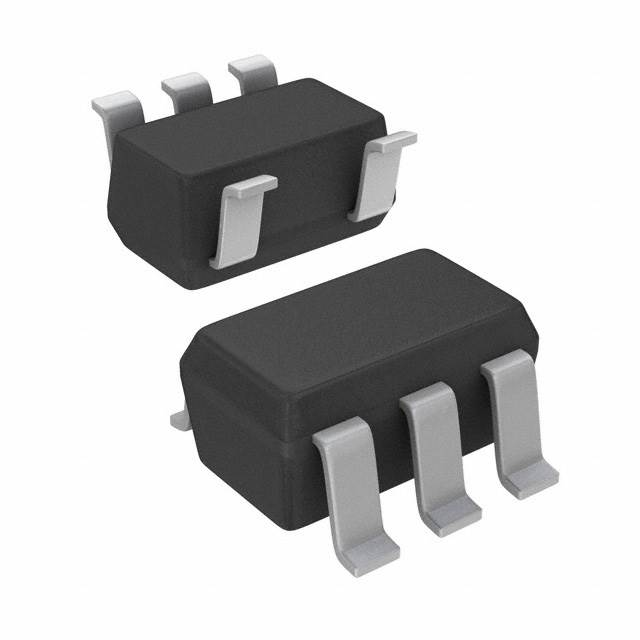

Supplier Package: SOT-23-5

Package/Housing: SC-74A, SOT-753

Applications

Incremental rotary encoding

Linear speed and direction control

Sunroof and boot motor control

Window and door motor control

Angular position sensing

Knob controls (radio and air conditioning)

Electronic power steering

Fluid measurement

Angular velocity and direction

Electronic pumps

Fans

Wheel and motor speeds
